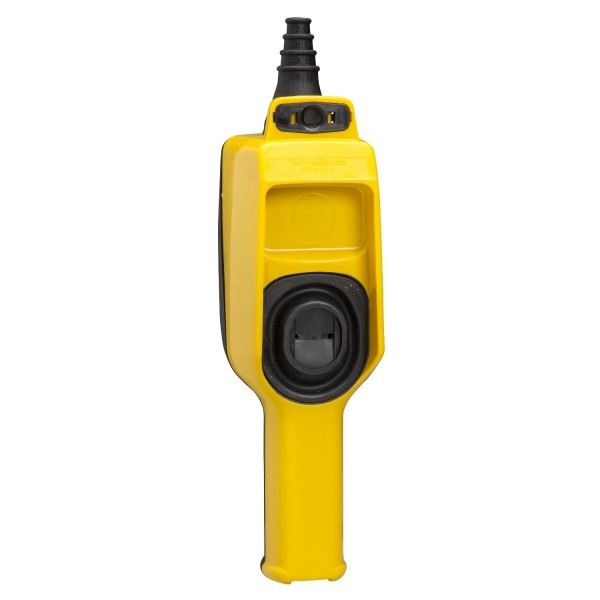

empty pendant control station XAC-D - directional operator, no opening

Details

Complementary
control station type	Double insulated
enclosure material	Polypropylene
control type	Intuitive
electrical circuit type	Power circuit Control circuit
enclosure type	Empty enclosure
number of cut-out	Without cut-out
control station colour	Yellow
cable entry	Rubber sleeve with stepped entry 7…18 mm
guard rail	Without
standards	CSA C22.2 No 14 EN/IEC 60947-5-1 UL 508
protective treatment	TH
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
shock resistance	70 gn conforming to IEC 60068-2-27
overvoltage category	Class II conforming to IEC 61140
IP degree of protection	IP65 conforming to IEC 60529
IK degree of protection	IK08 conforming to EN 50102
mechanical durability	1000000 cycles
net weight	0.345 kg

Offer Sustainability
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration

Contractual warranty
Warranty	18 months
