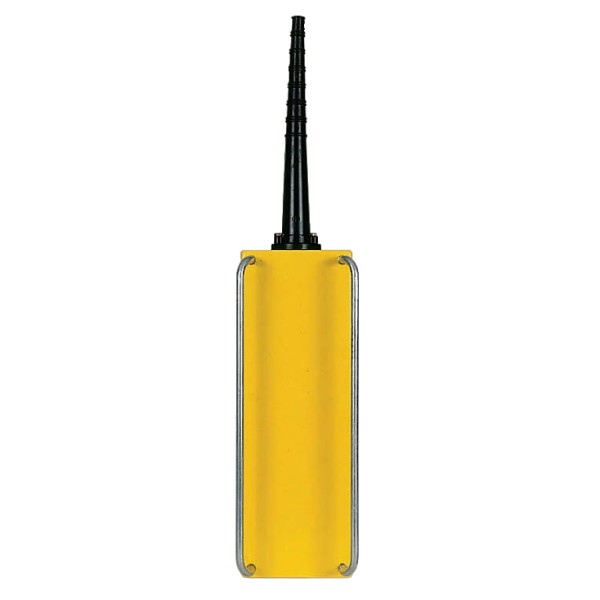

empty pendant control station XAC-F

Details

Complementary
control station type	Double insulated
enclosure material	Glass reinforced polyester
electrical circuit type	Control circuit
enclosure type	Empty enclosure
number of cut-out	Without cut-out
control station colour	Yellow
cable entry	Rubber sleeve with stepped entry 22…35 mm
guard rail	With
standards	EN/IEC 60947-5-1 UL 508 CSA C22.2 No 14
protective treatment	TH
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	15 gn 10…500 Hz)IEC 60068-2-6
shock resistance	100 gn IEC 60068-2-27
overvoltage category	Class II IEC 61140
IP degree of protection	IP65 IEC 60529
IK degree of protection	IK08 EN 50102
mechanical durability	1000000 cycles
net weight	2,5 kg

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
