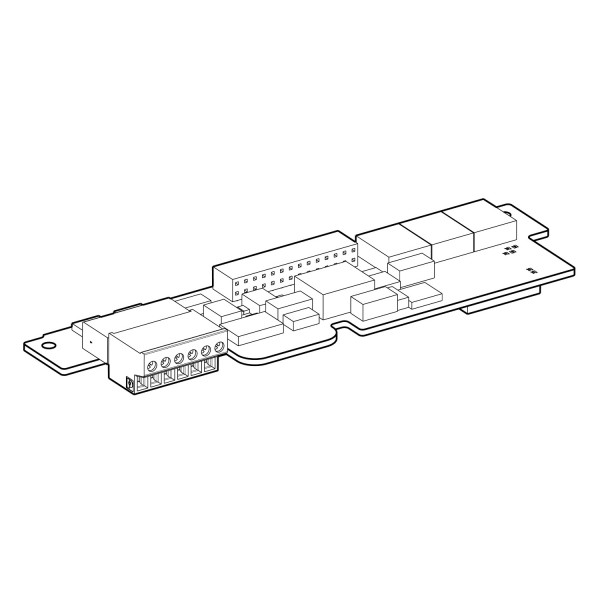

encoder interface card with open collector outputs - 12 V DC

Product was successfully added to your shopping cart.

encoder interface card with open collector outputs - 12 V DC

Tootekood: VW3A3403

Quick Overview

Saadavus: Tellimisel

109,14 € (ilma KM-ta)

Qty:

Details

Main
range of product	Altivar
product or component type	Encoder interface card
range compatibility	Altivar 61 Altivar Lift Altivar Process Modular Altivar 61Q Altivar 71Q Altivar 71
discrete output type	Open collector
[Us] rated supply voltage	12 V DC 12…13 V)
number of pulses per revolution	10000 ATV71H......383 5000 all ATV61 drives 5000 ATV71H...M3 5000 ATV71H...M3X 5000 ATV71H...N4

Complementary
maximum supply current	0,175 A
protection type	Short-circuit protection Overload protection
maximum cable distance between devices	500 m
maximum operating frequency	300 kHz
input signal	A B compliment of A compliment of B/AB/A
input impedance	1 kOhm
electrical connection	Terminal 0.2 mm² AWG 24) <100 m, encoder, 100 mA 10 V Terminal 0.5 mm² AWG 20) <100 m, encoder, 175 mA 10 V Terminal 0.5 mm² AWG 20) <200 m, encoder, 100 mA 10 V Terminal 0.75 mm² AWG 18) <200 m, encoder, 175 mA 10 V Terminal 1 mm² AWG 17) <500 m, encoder, 100 mA 10 V Terminal 1.5 mm² AWG 15) <500 m, encoder, 175 mA 10 V
net weight	0,2 kg

Offer Sustainability
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon

Contractual warranty
Garantii	18 months
