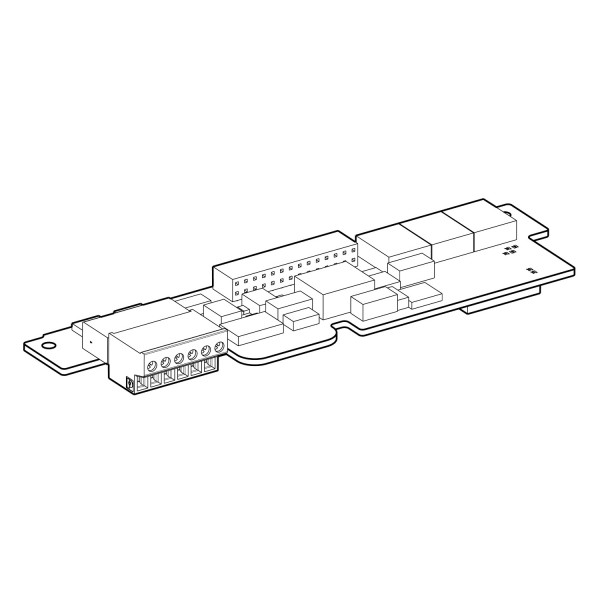

encoder interface card with RS422 compatible differential O w encoder emulation

Altivar

Encoder interface card

Altivar Lift
Altivar 71
Altivar 71Q

Differential

RS422

5 V (voltage limits: 5…5.5 V)
15 V (voltage limits: 15…16 V)

10000

ATV71H...M3383
ATV71H...M3X383
ATV71H...N4383

0.2 A

Overload protection
Short-circuit protection

50 m

300 kHz

A
B
Compliment of A
Compliment of B
Compliment of Z
Z

440 Ohm

A compliment of A
A compliment of A B compliment of B
A compliment of A B compliment of B Z compliment of Z

1, 1/2, 1/4, 1/8, 1/16, 1/32 or 1/64

Terminal, connection capacity: 0.5 mm² (AWG 20) <25 m cable length, encoder, 100 mA at 4.75 V
Terminal, connection capacity: 0.75 mm² (AWG 18) <50 m cable length, encoder, 100 mA at 4.75 V
Terminal, connection capacity: 1 mm² (AWG 17) <25 m cable length, encoder, 200 mA at 4.75 V
Terminal, connection capacity: 1.5 mm² (AWG 15) <50 m cable length, encoder, 200 mA at 4.75 V
Terminal, connection capacity: 0.2 mm² (AWG 24) <25 m cable length, encoder, 100 mA at 14.75 V
Terminal, connection capacity: 0.2 mm² (AWG 24) <25 m cable length, encoder, 50 mA at 14.75 V
Terminal, connection capacity: 0.2 mm² (AWG 24) <25 m cable length, encoder, 50 mA at 4.75 V
Terminal, connection capacity: 0.2 mm² (AWG 24) <50 m cable length, encoder, 50 mA at 14.75 V
Terminal, connection capacity: 0.5 mm² (AWG 20) <100 m cable length, encoder, 50 mA at 14.75 V
Terminal, connection capacity: 0.5 mm² (AWG 20) <25 m cable length, encoder, 200 mA at 14.75 V
Terminal, connection capacity: 0.5 mm² (AWG 20) <50 m cable length, encoder, 100 mA at 14.75 V
Terminal, connection capacity: 0.5 mm² (AWG 20) <50 m cable length, encoder, 50 mA at 4.75 V
Terminal, connection capacity: 0.75 mm² (AWG 18) <100 m cable length, encoder, 100 mA at 14.75 V
Terminal, connection capacity: 0.75 mm² (AWG 18) <100 m cable length, encoder, 50 mA at 4.75 V
Terminal, connection capacity: 0.75 mm² (AWG 18) <50 m cable length, encoder, 200 mA at 14.75 V
Terminal, connection capacity: 1 mm² (AWG 17) <200 m cable length, encoder, 50 mA at 14.75 V
Terminal, connection capacity: 1.5 mm² (AWG 15) <100 m cable length, encoder, 100 mA at 4.75 V
Terminal, connection capacity: 1.5 mm² (AWG 15) <100 m cable length, encoder, 200 mA at 14.75 V
Terminal, connection capacity: 1.5 mm² (AWG 15) <200 m cable length, encoder, 100 mA at 14.75 V
Terminal, connection capacity: 1.5 mm² (AWG 15) <200 m cable length, encoder, 50 mA at 4.75 V
Terminal, connection capacity: 1.5 mm² (AWG 15) <300 m cable length, encoder, 50 mA at 14.75 V

0.2 kg

Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration

Yes

18 months
