energy sensor, PowerTag Flex 230V, 63A 1P+N top and bottom position

Product was successfully added to your shopping cart.

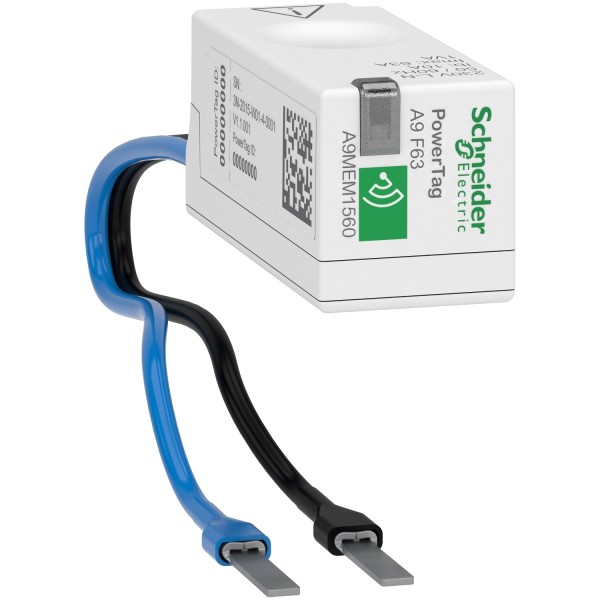

energy sensor, PowerTag Flex 230V, 63A 1P+N top and bottom position

Tootekood: A9MEM1560

Quick Overview

Saadavus: Tellimisel

67,76 € (ilma KM-ta)

Qty:

Details

Main
range of product	PowerLogic
product name	PowerTag A9 F63
product or component type	Energy sensor
Poles	1P + N
maximum current [Imax]	63 A
[Ib] based current	10 A
	40 mA
saturation current	130 A
product specific application	Cost allocation Load monitoring Circuit monitoring Overload alarm Energy management
	Acti9 Smartlink SI B Acti9 Smartlink SI D Acti9 PowerTag Link C Acti9 PowerTag Link Acti9 PowerTag Link HD Harmony Hub
range compatibility	Acti 9 iCV40 Vigi iC40 Vigi iC60 Acti 9 iDD40 XA Acti 9 iCV40 XA Vigi iDT40
communication port protocol	Modbus TCP/IP via Smartlink SI D Modbus TCP/IP via Smartlink SI B
type of measurement	Active energy Current Voltage Power factor Active power
accuracy class	Class 1 current conforming to IEC 61557-12 Class 0.5 voltage conforming to IEC 61557-12 Class 1 active power conforming to IEC 61557-12 Class 1 active energy conforming to IEC 61557-12 Class 1 power factor conforming to IEC 61557-12
mounting location	Top or bottom
mounting support	On circuit breaker
product destination	Switchboard
Event management	Voltage loss with measured current at voltage loss

Complementary
mounting mode	By screws (terminals)
Electrical connection (voltage sensing & power supply)	Wires with cable end
cable cross section	1 rigid cable 1.5…16 mm² 2 stranded cable 1.5…2.5 mm² 2 rigid cable 1.5…2.5 mm² 1 stranded cable 1.5…16 mm²
cable length	0.25 m
cable composition	1 x 0.33 mm²
supply voltage	220...240 V AC 45...65 Hz, +/- 20 %
network frequency	50 Hz 60 Hz
Maximum power consumption	1 VA
standards	IEC 61557-12 IEC 61010-1 IEC 61010-2-30 IEC 61326-1 ETSI EN 300 328
height	Sensor element: 20 mm
width	Sensor element: 18 mm
depth	Sensor element: 44.5 mm
net weight	16 g
colour	White (RAL 9003)
maximum emission power	10 mW
transmission support medium	Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4

Environment
quality labels	CE
operating altitude	0...2000 m
ambient air temperature for operation	-25…60 °C
ambient air temperature for storage	-40…85 °C
overvoltage category	III conforming to IEC 61010-1
measurement category	Category III conforming to IEC 61010-2-30
IP degree of protection	IP20 conforming to IEC 60529
IK degree of protection	IK05
pollution degree	3
relative humidity	0…95 % at 45 °C conforming to IEC 60721-3-3
vibration resistance	3M4 conforming to IEC 60721-3-3
environmental characteristics	Dustproof class 3S3 conforming to IEC 60721-3-3 Salt mist class 3C2 conforming to IEC 60721-3-3

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Compliant EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
