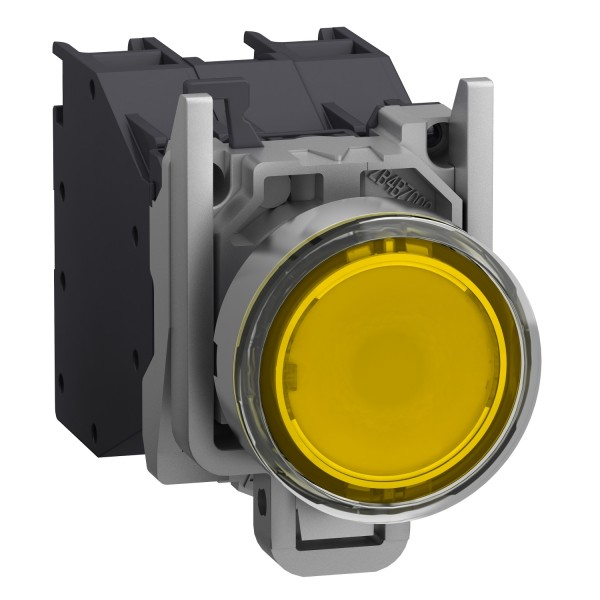

Explosive atmosphere - illuminated pushbutton yellow with boot 24 240V

Details

Main
range of product	Harmony XB4
product or component type	Complete illuminated push-button
device short name	XB4
bezel material	Chromium plated metal
fixing collar material	Zamak
mounting diameter	22 mm
sale per indivisible quantity	1
dust zone	Zone 21 - 22
gas zone	Zone 1 - 2
type of operator	spring return
operator profile	Yellow flush
operator additional information	Booted (clear silicon)
contacts type and composition	1 NO

Complementary
width	46.2 mm
height	30 mm
depth	72 mm
net weight	0.108 kg
device mounting	Fixing hole - diameter: 22.5 mm +/- 0.2 mm conforming to EN/IEC 60947-1
fixing center	>= 30 x 40 mm (support panel) - thickness: 1…6 mm
embedding depth	58 mm
marking	Ex tb IIIC Db II 2 GD Ex db eb mb IIC Gb
shape of signaling unit head	Round
contact operation	Slow-break
positive opening	Without
operating travel	1.657 mm (engagement point) 4.622 mm (changing state point) 4.452 mm (total travel)
operating force	3.962 N
mechanical durability	5000000 cycles
connections - terminals	Screw clamp terminals, 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, 1 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
tightening torque	0.8…1.2 N.m conforming to EN 60947-1
[Ith] conventional free air thermal current	10 A conforming to EN/IEC 60947-5-1
[Ui] rated insulation voltage	415 V
[Ie] rated operational current	1.9 A at 380 V, AC, A600 conforming to EN/IEC 60947-5-1 3 A at 240 V, AC, A600 conforming to EN/IEC 60947-5-1 6 A at 120 V, AC, A600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC, Q300 conforming to EN/IEC 60947-5-1 0.55 A at 125 V, DC, Q300 conforming to EN/IEC 60947-5-1 2.87 A at 24 V, DC, Q300 conforming to EN/IEC 60947-5-1
signalling type	Steady
light source	Integral LED
[Us] rated supply voltage	24...254 V AC/DC
current consumption	2...10 mA
service life	100000 h

Environment
protective treatment	TH
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-20…75 °C
overvoltage category	I conforming to IEC 60536
IP degree of protection	IP66 conforming to IEC 60529
standards	EN/IEC 60079-0:2009 EN/IEC 60079-7:2009 EN/IEC 60079-18:2009 EN/IEC 60079-31:2009 UL 60079-0 UL 60079-18 UL 60079-31 ANSI/ISA 12.12.01 CSA C22.2 No 213
product certifications	INERIS 04ATEX9004U

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
