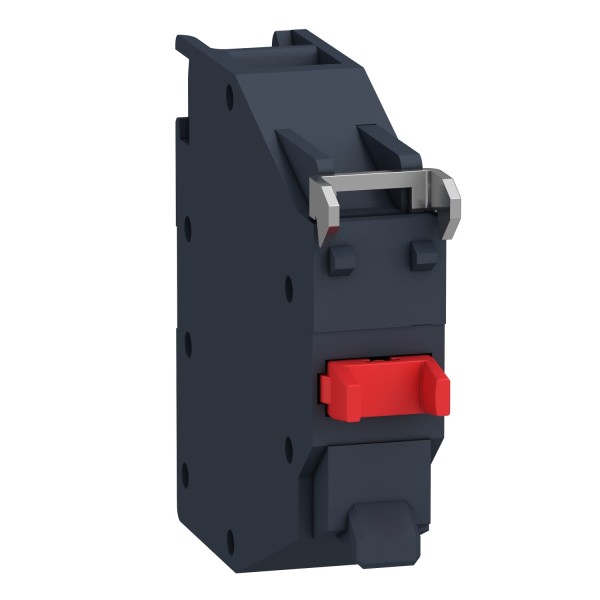

Explosive atmosphere - NC contact block

Ülevaaded: 0

Tootekood: ZBE102GEX

Quick Overview

Saadavus: Tellimisel

32,02 € (ilma KM-ta)

Details

Main
range of product
Harmony XB4
product or component type
Contact block
device short name
ZBE
sale per indivisible quantity
1
contacts type and composition
1 NC
contact operation
Standard
contact block type
Single
contacts usage
Gas protected contact
connections - terminals
Screw clamp terminals, 2 x 1.5 mm² without cable end
Screw clamp terminals, 1 x 2.5 mm² with cable end
Complementary
CAD overall width
38 mm
CAD overall height
10 mm
CAD overall depth
42.4 mm
net weight
0.019 kg
marking
Ex db eb IIC Gb
positive opening
With
operating travel
1.688 mm (engagement point)
3.271 mm (changing state point)
4.424 mm (total travel)
operating force
2.873 N
mechanical durability
1000000 cycles
tightening torque
0.8…1.2 N.m conforming to EN 60947-1
[Ith] conventional free air thermal current
10 A conforming to EN/IEC 60947-5-1
[Ui] rated insulation voltage
415 V
[Ie] rated operational current
1.9 A at 380 V, AC, A600 conforming to EN/IEC 60947-5-1
3 A at 240 V, AC, A600 conforming to EN/IEC 60947-5-1
6 A at 120 V, AC, A600 conforming to EN/IEC 60947-5-1
0.27 A at 250 V, DC, Q300 conforming to EN/IEC 60947-5-1
0.55 A at 125 V, DC, Q300 conforming to EN/IEC 60947-5-1
2.87 A at 24 V, DC, Q300 conforming to EN/IEC 60947-5-1
mounting of block
Front mounting
condition of use
Standard
Environment
protective treatment
TH
ambient air temperature for storage
-50…70 °C
ambient air temperature for operation
-50…75 °C
standards
UL 60079-31
UL 60079-0
UL 60079-1
ANSI/ISA 12.12.01
EN/IEC 60079-0
EN/IEC 60079-31
CSA C22.2 No 213
EN/IEC 60079-1
EN/IEC 60079-7
product certifications
CULus
environmental characteristic
Hazardous location class I division 2
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
