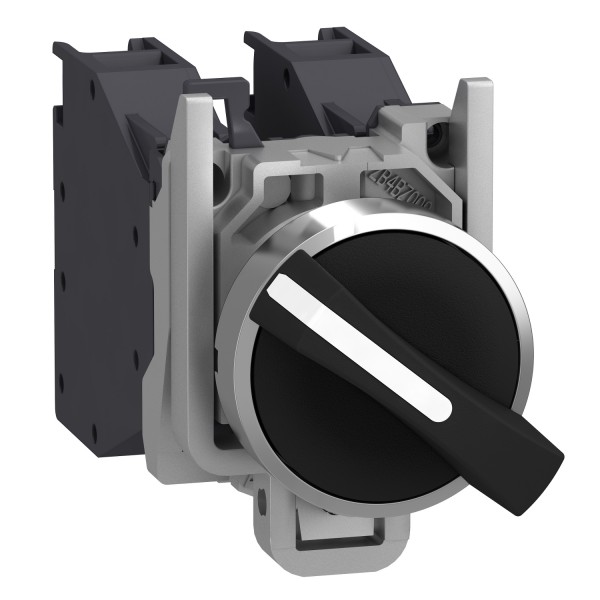

Explosive atmosphere - selector swith 2 positions stay put

Ülevaaded: 0

Tootekood: XB4BD25GEX

Quick Overview

Saadavus: Tellimisel

103,54 € (ilma KM-ta)

Details

Main
range of product
Harmony XB4
product or component type
Complete selector switch
device short name
XB4
bezel material
Chromium plated metal
fixing collar material
Zamak
mounting diameter
22 mm
sale per indivisible quantity
1
dust zone
Zone 21 - 22
gas zone
Zone 1 - 2
type of operator
stay put
operator profile
Black standard handle
contacts type and composition
1 NO + 1 NC
Complementary
width
46.2 mm
height
30 mm
depth
85 mm
net weight
0.115 kg
device mounting
Fixing hole - diameter: 22.5 mm +/- 0.2 mm conforming to EN/IEC 60947-1
fixing center
>= 30 x 40 mm (support panel) - thickness: 1…6 mm
embedding depth
58 mm
marking
II 2 GD
Ex tb IIIC Db
Ex db eb IIC Gb
shape of signaling unit head
Round
operator position information
2 positions 90°
contact operation
Slow-break
contacts usage
Standard contacts
positive opening
With
mechanical durability
5000000 cycles
connections - terminals
Screw clamp terminals, 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
tightening torque
0.8…1.2 N.m conforming to EN 60947-1
[Ith] conventional free air thermal current
10 A conforming to EN/IEC 60947-5-1
[Ui] rated insulation voltage
415 V
[Ie] rated operational current
1.9 A at 380 V, AC, A600 conforming to EN/IEC 60947-5-1
3 A at 240 V, AC, A600 conforming to EN/IEC 60947-5-1
6 A at 120 V, AC, A600 conforming to EN/IEC 60947-5-1
0.27 A at 250 V, DC, Q300 conforming to EN/IEC 60947-5-1
0.55 A at 125 V, DC, Q300 conforming to EN/IEC 60947-5-1
2.87 A at 24 V, DC, Q300 conforming to EN/IEC 60947-5-1
Environment
protective treatment
TH
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-20…75 °C
IP degree of protection
IP65 conforming to IEC 60529
standards
EN/IEC 60079-0:2009
EN/IEC 60079-1:2009
EN/IEC 60079-7:2009
EN/IEC 60079-31:2009
UL 60079-0
UL 60079-1
UL 60079-31
ANSI/ISA 12.12.01
CSA C22.2 No 213
product certifications
INERIS 04ATEX9004U
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
