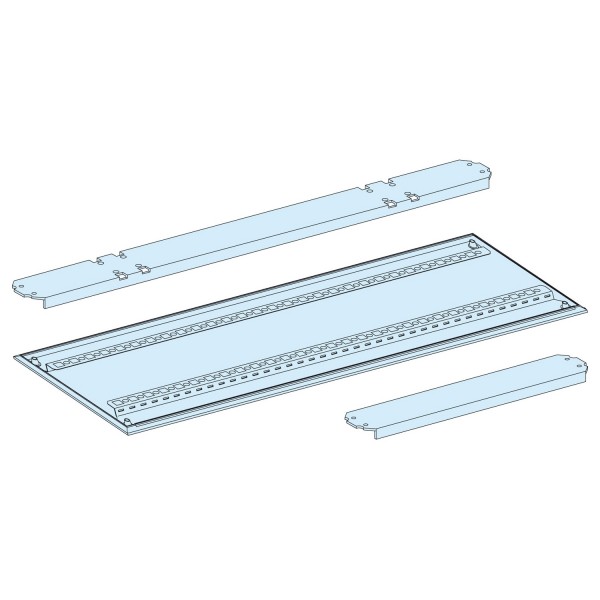

EXTENSION ENCLOSURE W600 19M PRISMA G IP55

Ülevaaded: 0

Tootekood: 08315

Quick Overview

Saadavus: Tellimisel

131,90 € (ilma KM-ta)

Details

Main
range
Prisma
product name
Prisma G
IP degree of protection
IP55 with door
product or component type
Rear panel
enclosure type
Functional enclosure delivered in kit form
device application
Low voltage electrical distribution
enclosure mounting
Surface
type of front plate
Without
number of vertical modules [50 mm]
19
number of 18 mm modules per row
24
Complementary
installation description
Wall-mounted enclosure 600 mm
[Ui] rated insulation voltage
1000 V on main rear busbars IEC 61439-2
[In] rated current
630 A 40 °C IEC 61439-2
[Icw] rated short-time withstand current
25 kA 1 s IEC 61439-2
[Ipk] rated peak withstand current
53 kA IEC 61439-2
network frequency
50/60 Hz
enclosure material
Rear panel treated sheet steel
additional information
Can be combined side by side and one on top of another
quantity per set
Set of 1
height
1050 mm
width
600 mm
depth
260 mm
net weight
8,82 kg
surface finish
Smooth
Matt
colour
White RAL 9001)
Environment
IK degree of protection
IK10 with door EN/IEC 62262
protective treatment
Electrophoresis treatment and hot-polymerised polyester epoxy powder
standards
IEC 61439-1
IEC 62208
IEC 61439-2
mechanical robustness
Seismic tests - 2.5G IEC 60068-2-57
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus
Contractual warranty
Garantii
18 months
