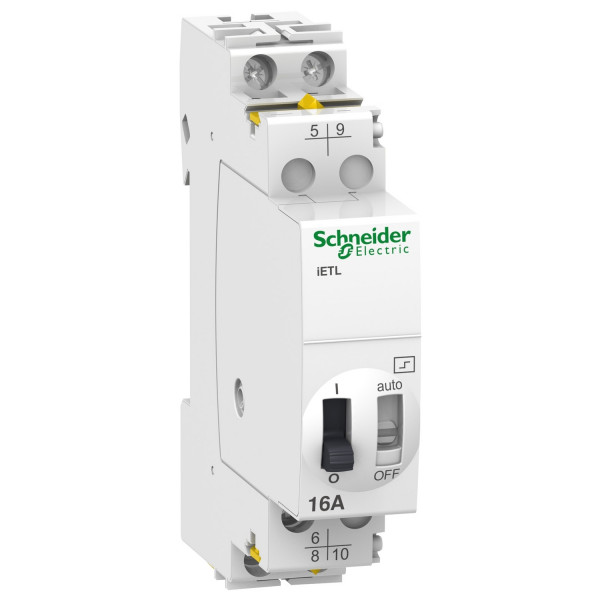

extension iETL iTL 16 - 2P - 1C/O + 1NO - 16A - coil 130VAC 50/60Hz

Details

Complementary
network frequency	50/60 Hz
[Ue] rated operational voltage	415 V AC 50/60 Hz
control type	Toggle Remote control
control signal type	Impulse
switching frequency	5 switching operations/minute
impulse duration	50 ms
remote control type	Illuminated push-button 3 mA
local signalling	ON/OFF indication
[Uc] control circuit voltage	130 V AC 50/60 Hz 48 V DC
supply inrush power	19 VA
mounting mode	Fixed, on right side of TL
mounting support	35 mm symmetrical DIN rail
9 mm pitches	2
height	60 mm
width	18 mm
depth	84 mm
colour	White
electrical durability	AC-21: 200000 cycles AC-22: 100000 cycles
connections - terminals	Tunnel type terminals - <= 6 mm²
auxiliary connection terminal	Tunnel type terminalscontrol circuit in 0.5…6 mm²
range compatibility	Acti 9 iTL iTL Acti 9 iTL iTLi
product compatibility	ITL 16A

Environment
standards	EN 669-2-2 EN 669-1
product certifications	GOST
quality labels	IMQ NF KEMA VDE CEBEC
noise level	60 dB
IP degree of protection	IP20 conforming to IEC 60529
pollution degree	3
tropicalisation	2 conforming to IEC 60068-1
relative humidity	95 % at 55 °C
ambient air temperature for operation	-20…50 °C
ambient air temperature for storage	-40…70 °C

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
