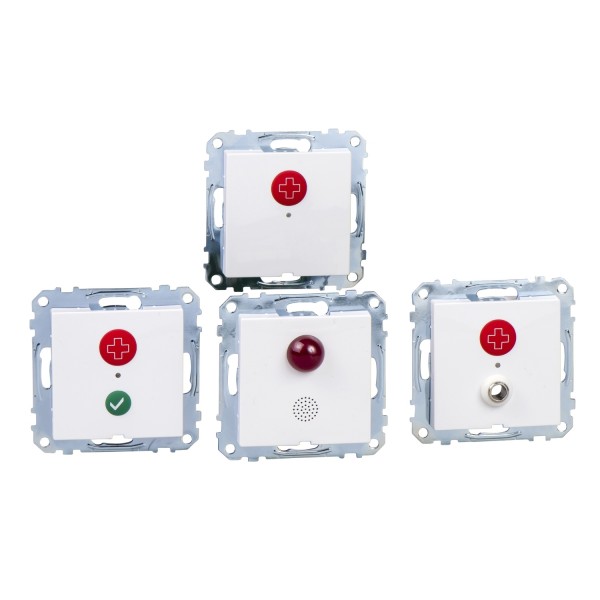

Exxact call system package w/o transformer white

Tootekood: WDE002257

Quick Overview

Saadavus: Tellimisel

299,21 € (ilma KM-ta)

Qty:

Complementary
wiring device mounting	Flush
rated current/voltage	80 mA - 12 V +/- 10 % AC/DC operation 15 mA - 12 V +/- 10 % AC/DC stand by
output voltage	<= 20 V DC <= 25 mA for LED <= 20 V DC <= 40 mA for buzzer
colour	White (RAL 9003)
local signalling	Red LED
connections - terminals	Screw terminals
shape of screw head	Track version
sound frequency	3.1 kHz +/- 0.8 kHz
acoustic level	80 dB at 1 m
material	ABS (acrylonitrile butadiene-styrene)

Environment
IP degree of protection	IP20

Offer Sustainability
REACh Regulation	REACh Declaration
EU RoHS Directive	Compliant EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information

Contractual warranty
Warranty	18 months
