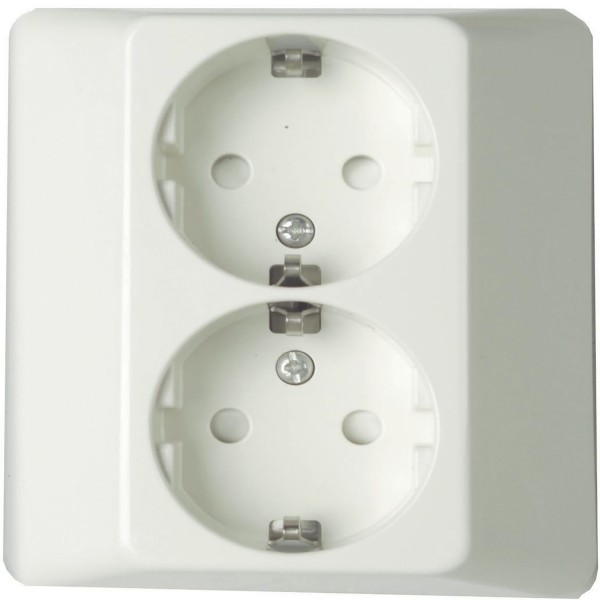

Exxact double socket outlet with Artic cover screwless with S30 insert white

Details

Complementary
socket number	2
outlet poles configuration	2P + E with shutters
rated current/voltage	16 A at 250 V AC
colour	White
connections - terminals	Screwless terminals
number of loop terminals	1
clamping connection capacity	1 x 1.5...2 x 2.5 mm² for solid cable(s) 1 x 1.5...2 x 2.5 mm² for solid stranded cable(s)
material	PC PC (polycarbonate)
optional fixing mode	By screws: insert
embedding depth	20 mm
height	95 mm
width	85 mm
projecting depth	23 mm

Environment
standards	SS 4280834 IEC 60884-1 DIN VDE 0620-1 SFS 5610:2004
product certifications	FIMKO SEMKO NEMKO
IP degree of protection	IP20 also with visual parts removed

Offer Sustainability
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope)
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
