Exxact electronic timer with integrated sso complete white

Product was successfully added to your shopping cart.

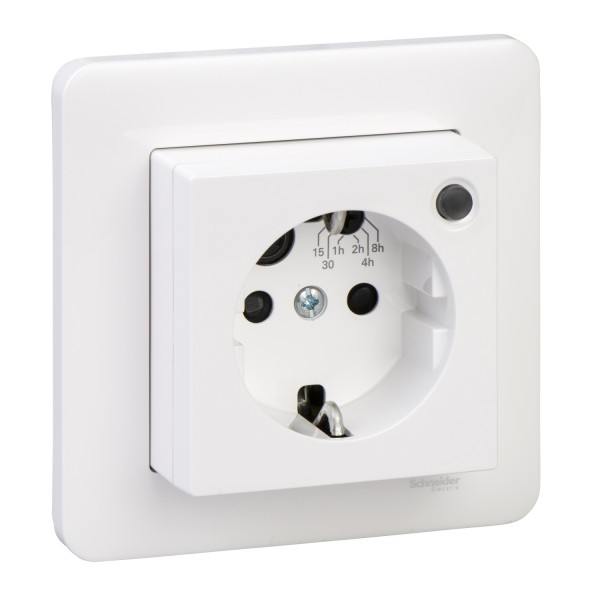

Exxact electronic timer with integrated sso complete white

Tootekood: WDE008329

Quick Overview

Saadavus: Tellimisel

156,44 € (ilma KM-ta)

Qty:

Details

Main
range of product	Exxact
product or component type	Electronic timer
quantity per set	1 piece

Complementary
wiring device mounting	Flush
switch function	2-pole
rated current	8 A for resistive 8 A for inductive cos phi = 0.6 8 A for capacitive 40 µF
rated voltage	230 V AC
power range	Motor: 1000 W Incandescent lamp: 1840 W 230 V AC halogen lamp: 1500 W
colour	White
local signalling	Green LED indication in active position
time delay	1 h 2 h 15 minutes 30 minutes 8 h 4 h
connections - terminals	Screw terminals
shape of screw head	Pozidriv No 1 and combi
clamping connection capacity	1 x 1.5...2 x 2.5 mm² for solid cable(s) 1 x 1.5...2 x 2.5 mm² for solid stranded cable(s)
material	PC
protection type	Electronic overload and temperature protection
embedding depth	30 mm
height	87 mm
width	87 mm
projecting depth	32 mm
product compatibility	Complete with Exxact frame

Environment
standards	IEC 60884-1 EN 60669-2-3 EN 60669-2-1 EN 60669-1
IP degree of protection	IP20

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Compliant EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
