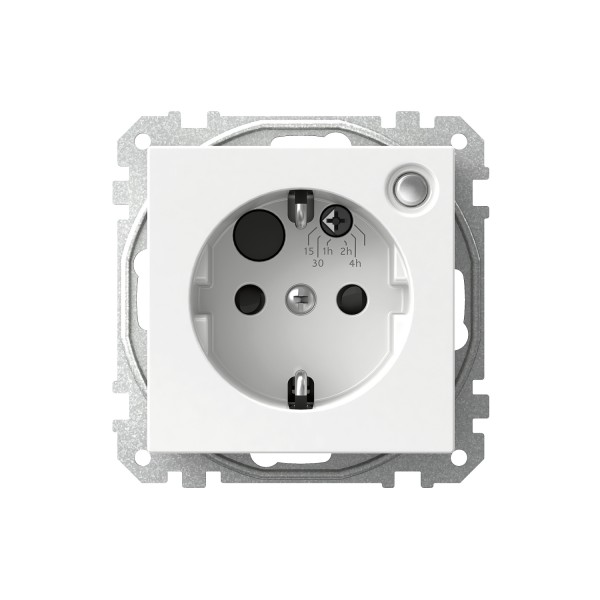

Exxact electronic timer with integrated sso white

Ülevaaded: 0

Tootekood: WDE002469

Quick Overview

Saadavus: Tellimisel

99,95 € (ilma KM-ta)

Details

Main
range of product
Exxact
product or component type
Electronic timer
quantity per set
1 piece
Complementary
wiring device mounting
Flush
switch function
2-pole
rated current
8 A for resistive
8 A for inductive cos phi = 0.6
8 A for capacitive 40 µF
rated voltage
230 V AC
power range
Motor: 1000 W
Incandescent lamp: 1840 W
230 V AC halogen lamp: 1500 W
colour
White
local signalling
Green LED indication in active position
time delay
2 h
4 h
15 minutes
1 h
30 minutes
8 h
connections - terminals
Screw terminals
shape of screw head
Pozidriv No 1 and combi
clamping connection capacity
1 x 1.5...2 x 2.5 mm² for solid cable(s)
1 x 1.5...2 x 2.5 mm² for solid stranded cable(s)
material
PC
protection type
Electronic overload protection
Electronic over temperature protection
Short-circuit protection
With
Internal fuse
embedding depth
30 mm
height
71 mm
width
71 mm
projecting depth
32 mm
product compatibility
To be completed with Exxact frame
Environment
standards
EN 60669-1
EN 60669-2-3
IEC 60884-1
EN 60669-2-1
IP degree of protection
IP20
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
Circularity Profile
Contractual warranty
Warranty
18 months
