Details
Characteristics
| range of product | Exxact | |
|---|---|---|

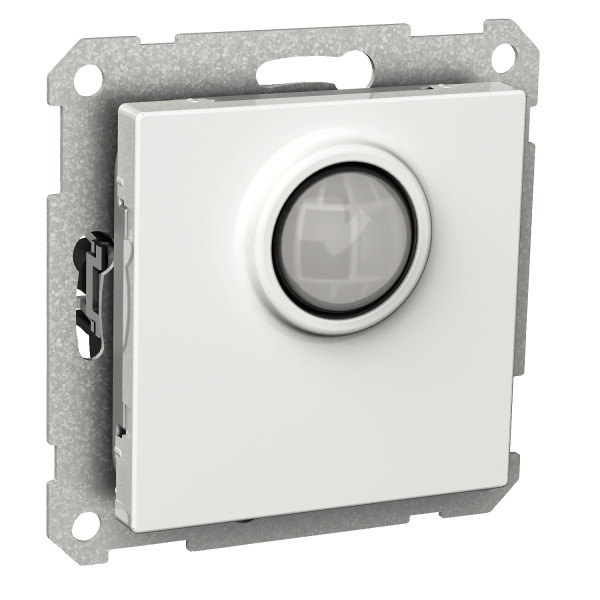

| product or component type | Basic movement detector | |
| quantity per set | 1 piece |
| version | Basic version | |
|---|---|---|
| rated power in W | 350 W | |
| wiring device mounting | Flush | |
| power range | 40...350 W for incandescent lamp40...350 W for 230 V AC halogen lamp | |
| detection angle | 120° | |
| light sensitivity | 0…500 lux | |
| time delay | 1 s...20 min | |
| rated current/voltage | 16 A at 230 V AC | |
| colour | White | |
| connections - terminals | Screwless terminals | |
| clamping connection capacity | 1 x 1.5...2 x 2.5 mm² for solid cable(s)1 x 1.5...2 x 2.5 mm² for solid stranded cable(s) | |
| material | ABS (acrylonitrile butadiene-styrene) | |
| wiring configuration | Without neutral | |
| mounting height | 1…1.5 m | |
| embedding depth | 16 mm | |
| height | 71 mm | |
| width | 71 mm | |
| projecting depth | 20 mm | |
| product compatibility | To be completed with Exxact frame |
| standards | EN 61000-6EN 60669-2-1 | |
|---|---|---|
| product certifications | SEMKOFIMKOCENEMKO | |
| IP degree of protection | IP20 also with visual parts removed |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
|---|
