Details
Characteristics
| range of product | Exxact | |
|---|---|---|
| range | Exxact | |
| aesthetic name | Primo | |

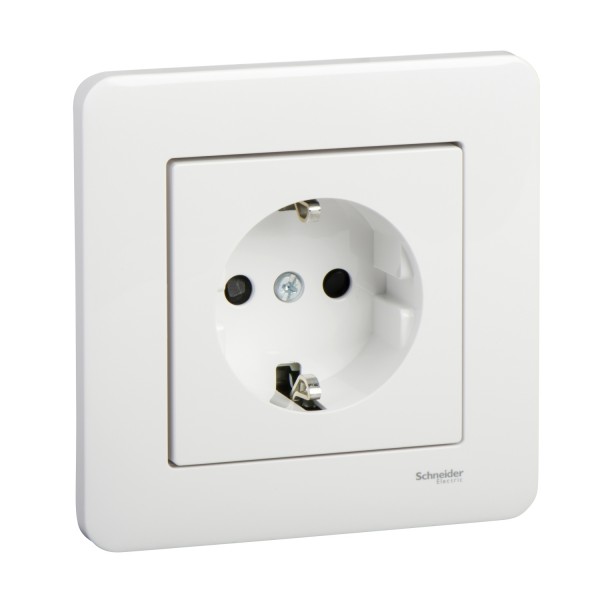

| product or component type | Socket-outlet | |
| device presentation | Complete product | |
| quantity per set | 10 pieces |
| device mounting | Flush | |
|---|---|---|
| socket number | 1 | |
| outlet poles configuration | 2P + E with shutters | |
| rated current/voltage | 16 A at 250 V AC | |
| colour | White | |
| connections - terminals | Screw terminals | |
| shape of screw head | Pozidriv No 1 and combi | |
| clamping connection capacity | 1 x 1.5...2 x 2.5 mm² for solid cable(s)1 x 1.5...2 x 2.5 mm² for solid stranded cable(s) | |
| material | ASA + PC | |
| embedding depth | 28 mm | |
| height | 87 mm | |
| width | 87 mm | |
| projecting depth | 11.8 mm |
| standards | SS 4280834DIN VDE 0620-1IEC 60884-1SFS 5610:2004 | |
|---|---|---|
| product certifications | NEMKOSEMKOFIMKO | |
| IP degree of protection | IP20 also with visual parts removed |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| Environmental Disclosure | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
|---|
