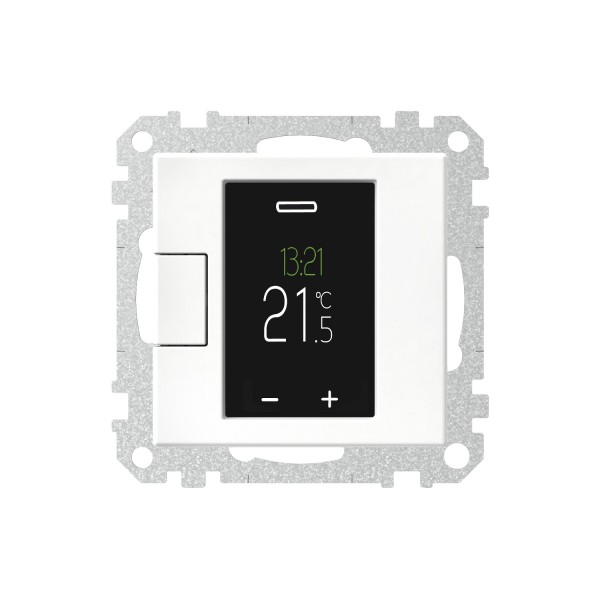

Exxact - Programmable thermostat 2-pole with touch display

Details

Main
range	Exxact
product or component type	Electronical thermostat
device application	Heating
device presentation	Mechanism with fixing frame and central plate
colour	Central plate: white (RAL 9003)
quantity per set	Set of 1
type of packing	Carton
wiring device additional information	Possibility to connect external sensor

Complementary
[Ue] rated operational voltage	230 V AC 50 Hz
[In] rated current	16 A (resistive load) 1 A (inductive load) cos phi = 0.6
associated fuse rating	16 A
protection type	Overheating protection Electronic overload protection
control type	Touch screen
product compatibility	To be completed with Exxact frame design
function available	Operating hours display Control unit behaviour : PWM or 2-level Automatic winter/summer time changeover Self-learning lead times Relay output behaviour : break/make contact Valve protection function
measurement accuracy	+/- 0.5 °C
contacts type and composition	NO
switch function	2-pole
display type	OLED screen
display resolution	96 x 96 pixels
display material	Plastic
display size	44 mm
number of terminals	7 screw terminals
clamping connection capacity	2 x 1.5...1 x 4 mm²
shape of screw head	Minus head
wire stripping length	10 mm
information displayed	Temperature in °C white Time green Operating mode red Operating time counter
electrical durability	100000 cycles
temperature setting range	5…50 °C floor mode 5…35 °C air mode 5…50 °C dual mode
material	Thermoplastic ABS-UV stabilised: centre plate Metal: fixing frame PA (polyamide) 6 GF20 FR: casing
device mounting	Flush
fixing mode	By screws
height	71 mm
width	71 mm
depth	51 mm
embedding depth	32 mm
net weight	0.22 kg

Environment
IP degree of protection	IP20
IK degree of protection	IK04
ambient air temperature for operation	-10…35 °C
ambient air temperature for storage	-5…50 °C
relative humidity	0…95 %
standards	EN 60730-2-9
product certifications	SEMKO FIMKO NEMKO
directives	2004/108/EC - electromagnetic compatibility 2006/95/EC - low voltage directive

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Compliant EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
