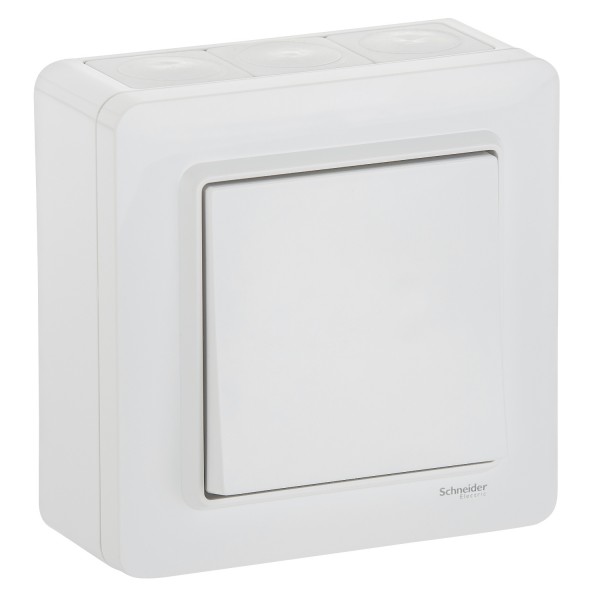

Exxact rocker switch 2-way complete surface IP44 screwless white

Details

Complementary
device mounting	Surface
device presentation	Complete product
switch function	1-pole 2-way
switch pattern	[6/1]
rated current/voltage	16 A at 250 V AC
colour	White (RAL 9003)
connections - terminals	Screwless terminals
loop terminals	2
clamping connection capacity	1 x 1.5...2 x 2.5 mm² for solid cable(s) 1 x 1.5...2 x 2.5 mm² for solid stranded cable(s)
material	ABS (acrylonitrile butadiene-styrene)
optional fixing mode	By screw: rocker By screw: box
height	85 mm
width	85 mm
projecting depth	43 mm

Offer Sustainability
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope)
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
