Details
Characteristics
| range | Exxact | |
|---|---|---|

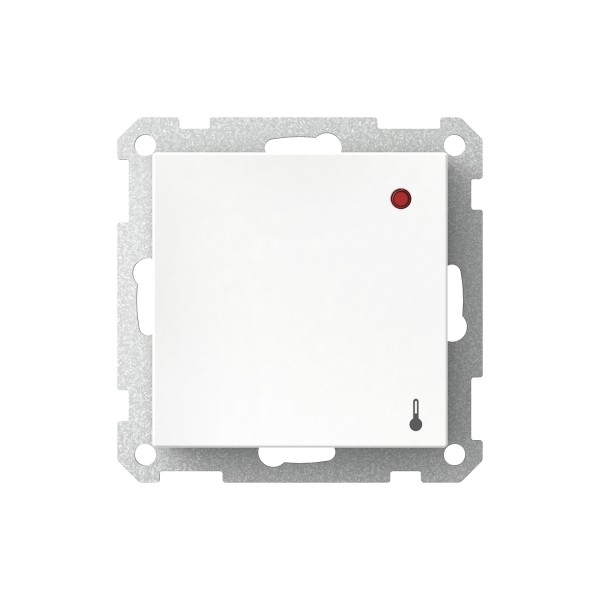

| product or component type | Floor thermostat | |
| colour | White | |
| quantity per set | Set of 1 |
| [Ue] rated operational voltage | 230 V AC 50 Hz | |
|---|---|---|
| [In] rated current | 16 A (resistive load) | |
| rated current/voltage | 16 A at 230 V AC | |
| product compatibility | To be completed with Exxact frame design | |
| switch function | 2-pole | |
| local signalling | LED (red)heating application: LED (green)operating: | |
| connections - terminals | Screw terminals | |
| clamping connection capacity | 1 x 1.5...2 x 2.5 mm² for solid cable(s)1 x 1.5...2 x 2.5 mm² for solid stranded cable(s) | |
| temperature setting range | 5…30 °C | |
| material | ABS (acrylonitrile butadiene-styrene) | |
| device mounting | Flush | |
| height | 71 mm | |
| width | 71 mm | |
| embedding depth | 25 mm | |
| projecting depth | 17 mm |
| IP degree of protection | IP20 also with visual parts removed | |
|---|---|---|
| standards | EN 60669-1 | |
| product certifications | FIMKOCESEMKONEMKO |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
|---|
