Details
Characteristics
| range of product | Exxact | |
|---|---|---|
| range | Exxact | |

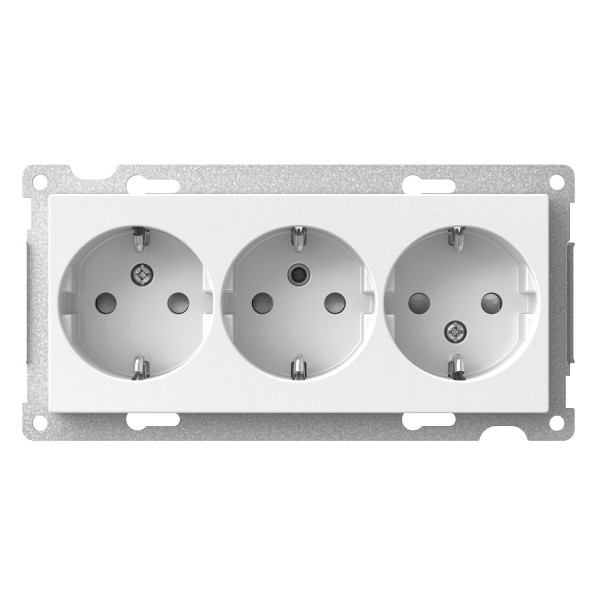

| product or component type | Socket-outlet | |
| device presentation | Mechanism | |
| quantity per set | 5 pieces |
| device mounting | Flush | |
|---|---|---|
| socket number | 3 | |
| outlet poles configuration | 2P + E with shutters | |
| rated current/voltage | 16 A at 250 V AC | |
| colour | White | |
| connections - terminals | Screw terminals | |
| number of loop terminals | 2 | |
| shape of screw head | Pozidriv No 1 and combi | |
| clamping connection capacity | 1 x 1.5...2 x 2.5 mm² for solid cable(s)1 x 1.5...2 x 2.5 mm² for solid stranded cable(s) | |
| material | ASA + PC | |
| mounting location | In a 2 module wall box | |
| embedding depth | 30.7 mm | |
| height | 71.1 mm | |
| width | 142.1 mm | |
| projecting depth | 11.8 mm | |
| product compatibility | 2-module opening Exxact frame |
| standards | VDE 0620-1NEK 502:2006SS 4280834IEC 60884-1SFS 5610:2004 | |
|---|---|---|
| product certifications | SEMKOFIMKONEMKO | |
| IP degree of protection | IP20 also with visual parts removed |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| Environmental Disclosure |
| Warranty | 18 months |
|---|
