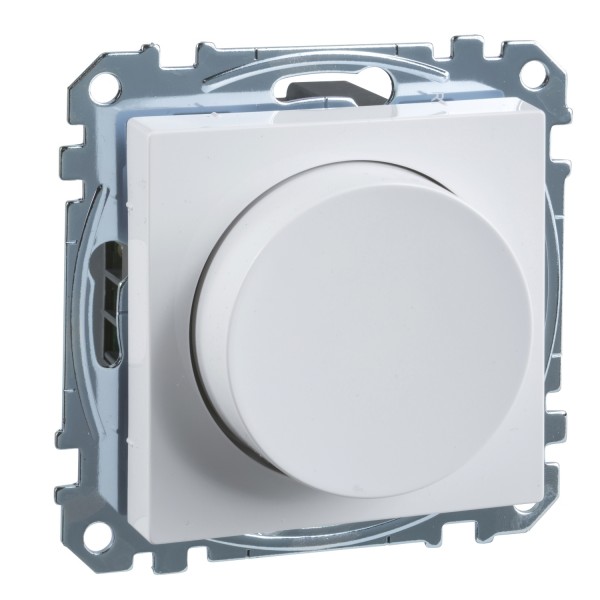

Exxact uni LED rotary dimmer 400W white

Details

Main
range	Exxact
device short name	SBD200LED
product or component type	Dimmer
device application	Control
device presentation	Mechanism with central plate

Complementary
dimmer type	Universal
dimmer control	Rotary push type
control type	Rotary push type
switch function	1-pole 2-way
load type	incandescent lamp 230 V halogen lamp LED lamp low voltage halogen lamp with ferromagnetic transformer low voltage halogen lamp with electronic transformer
power range	Halogen lamp: 4...400 W Incandescent lamp: 4...400 W LED lamp: 4...40 W (RL LED mode) LED lamp: 4 W...200 VA (RC LED mode) Low voltage halogen lamp with electronic transformer: 4...400 W Low voltage halogen lamp with ferromagnetic transformer: 4 W...400 VA
rated current/voltage	10 A at 230 V AC
protection type	Electronic short-circuit and automatic overload protection
connections - terminals	Screw terminals
wire stripping length	6 mm
clamping connection capacity	1 x 2.5 mm² for solid or flexible with sleeve cable(s) 2 x 1.5 mm² for solid or flexible with sleeve cable(s)
colour	White (RAL 9003)
material	ABS (acrylonitrile butadiene-styrene): central plate ABS (acrylonitrile butadiene-styrene): knob
surface finish	Glossy
device mounting	Flush
fixing mode	By screws
type of packing	Carton
embedding depth	29 mm
height	71 mm
width	71 mm
depth	51 mm
net weight	0.099 kg
projecting depth	22 mm
product compatibility	To be completed with Exxact frame

Environment
ambient air temperature for operation	-5…35 °C
relative humidity	5…95 %
standards	EN 61000-6-3 EN 60669-2-1
product certifications	CE
IP degree of protection	IP20

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Compliant EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
