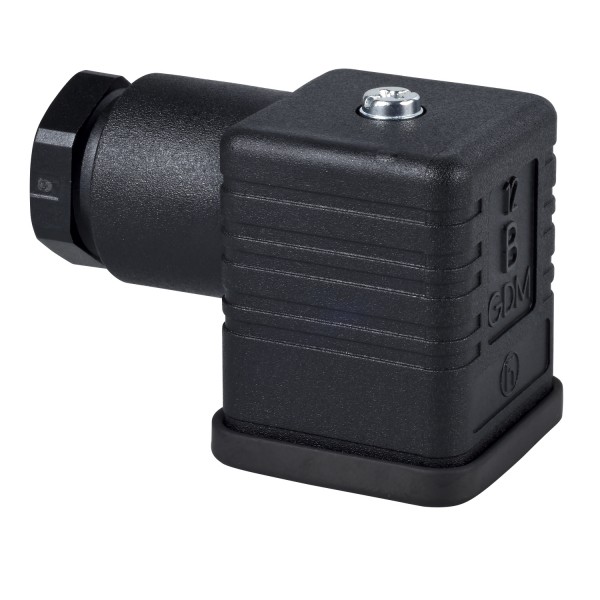

female, DIN 43650 A, 4-pin, elbowed connector - cable gland Pg 11

Tootekood: XZCC43FCP40B

Quick Overview

Saadavus: Tellimisel

2,81 € (ilma KM-ta)

Qty:

Main
accessory / separate part category	Cabling accessories
accessory / separate part type	Connector
electrical connection	Elbowed female connector DIN 43650 A, 4 pins
status LED	Without
cable connection	Screw terminal 1,5 mm² 7…10 mm

Complementary
cable gland type	Pg 11
cable connector fixing	Locking screw
[Ue] rated operational voltage	250 V AC
[In] rated current	16 A
enclosure material	Plastic
minimum insulating resistance	0,1 GΩ
contact resistance	4000 µOhm
net weight	0,035 kg

Environment
IP degree of protection	IP65
ambient air temperature for operation	-40…125 °C

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah

Contractual warranty
Garantii	18 months
