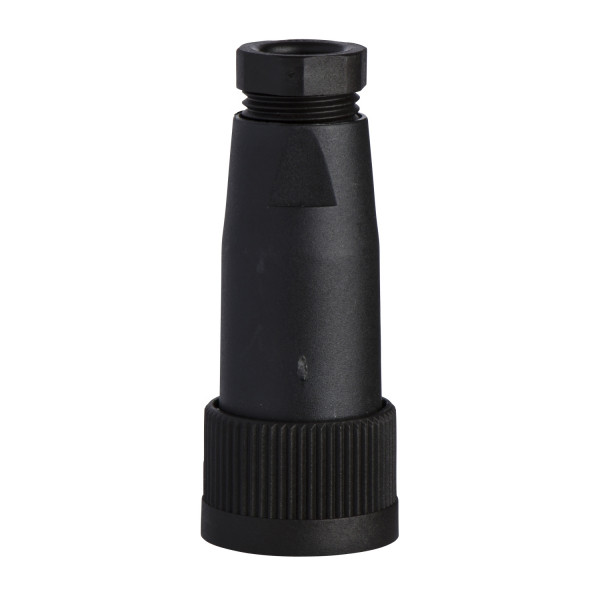

female, M18, 4-pin, straight connector - cable gland Pg 9

Tootekood: XZCC18FDP40B

Quick Overview

Saadavus: Tellimisel

35,53 € (ilma KM-ta)

Qty:

Main
accessory / separate part category	Cabling accessories
accessory / separate part type	Connector
electrical connection	Straight female connector M18, 4 pins
collar material	Plastic
status LED	Without
cable connection	Screw terminal / wire size <1.5 mm² / clamping capacity 5…8 mm

Complementary
cable gland type	Pg 9
cable connector fixing	Screw-on
[Ue] rated operational voltage	250 V AC
[In] rated current	16 A
enclosure material	Plastic
minimum insulating resistance	1000 GΩ
contact resistance	10000 µOhm
net weight	0.035 kg

Environment
IP degree of protection	IP65
ambient air temperature for operation	-40…85 °C

Offer Sustainability
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes

Contractual warranty
Warranty	18 months
