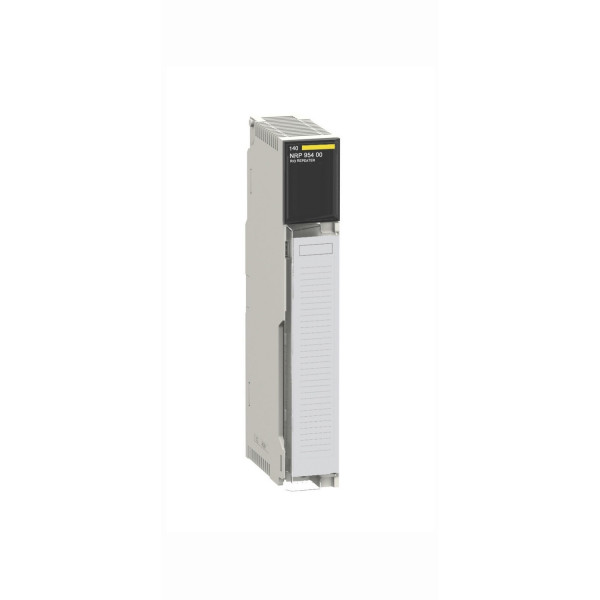

Fibre optic repeater MM/ST RIO S908 2CH

Ülevaaded: 0

Tootekood: 140NRP95400

Quick Overview

Saadavus: Tellimisel

4 793,83 € (ilma KM-ta)

Details

Main
range of product
Modicon Quantum automation platform
product or component type
Fibre optic repeater
optic fiber type
Multi mode
Complementary
bus current requirement
700 mA
power dissipation in W
5 W
inrush current
1 A at 5 V DC
number of port
2 fiber optic, connector type: ST
1, connector type: coaxial connector
local signalling
1 LED green with RDY marking for module status
1 LED red with ERR marking for internal fault, module failure
1 LED green for coaxial communication status
2 LEDs green for optical communication status
1 LED red with FAULT marking for error
1 LED red for activity detected
wavelength
820 nm
optic distance between 2 transceivers
2000 m (50/125 µm), optical power: 3.5 dBm
3000 m (62.5/125 µm), optical power: 3.5 dBm
3000 m (100/140 µm), optical power: 5 dBm
attenuation
-20…-13 dB (50/125 µm)
-16…-10 dB (62.5/125 µm)
-10.5…-4 dB (100/140 µm)
rise/fall time
20 ns
receiver sensitivity
- 30 dBm
dynamic range
20 dB
detected silence
-36 dBm
marking
CE
material
PC (polycarbonate)
AWG gauge
AWG 14...AWG 1
width
40.34 mm
height
250 mm
depth
103.85 mm
net weight
0.554 kg
Environment
ambient air temperature for operation
0…60 °C
ambient air temperature for storage
-40…85 °C
relative humidity
0…95 %
operating altitude
0...2000 m
standards
CSA C22.2 No 142
UL 508
FM Class 1 Division 2
product certifications
TÜV
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
