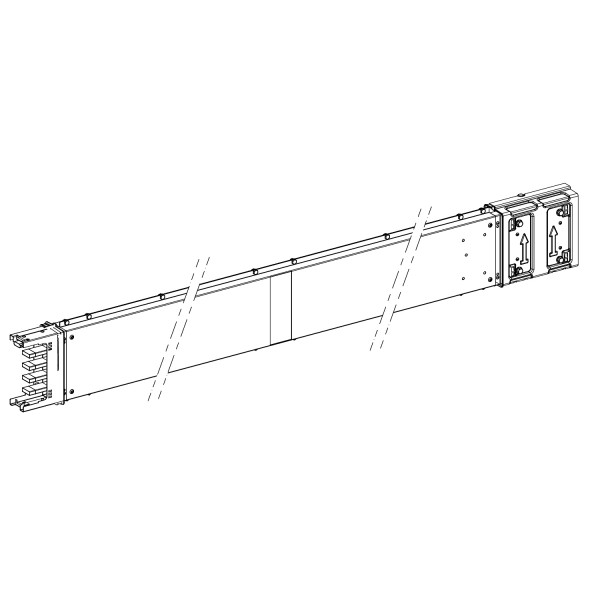

FIRE BARRIER LENGTH 400 A

Details

Main
range of product	Canalis
product name	KS
offer type	Standard
product or component type	Busbar trunking
busbar description	Transport length Fire barrier
BAR MATERIAL	Aluminium
device application	Medium power distribution
[Ie] rated operational current	400 A 35 °C
number of tap-off outlets	0

Complementary
[Ue] rated operational voltage	230...690 V
network frequency	50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
[Ui] rated insulation voltage	690 V
[Icw] rated short-time withstand current	18,8 kA
[Ipk] rated peak withstand current	49,2 kA
electrical connection	Lubricated sliding contact
radiated magnetic field	1 µT
thermal stress limit	354 kA².s
THDI	0…15 % 400 A 15…33 % 315 A 33…100 % 250 A
maximum voltage drop	<0,022 V 0,9 50 Hz with 1A for 100 m long <0,022 V 0,8 50 Hz with 1A for 100 m long <0,021 V 0,7 50 Hz with 1A for 100 m long <0,018 V 1 50 Hz with 1A for 100 m long
mounting mode	By screws
mounting position	Vertical - neutral on right
neutral position	Up
busbar trunking polarity	3L + N + PE 3L + PEN
dimension type	Made to measure
width	146 mm
depth	54 mm
height	900…2200 mm
net weight	9,9 kg

Environment
standards	IEC 60439-2 IEC 61439-6

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus	Toote keskkonnaprofiil
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Halogeensisu	Halogeenivaba toode

Contractual warranty
Garantii	18 months
