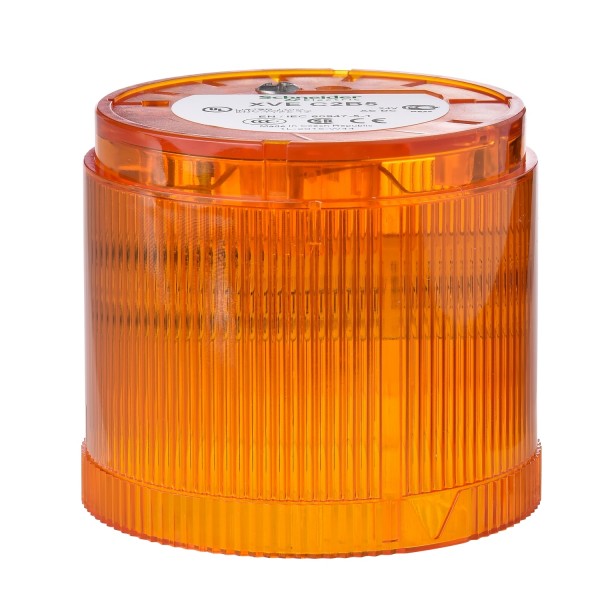

FLASHING LED LENS UNIT (YELLOW)

Ülevaaded: 0

Tootekood: XVEC5M5

Quick Overview

Saadavus: Ei saa enam tellida

55,59 € (ilma KM-ta)

Details

Main
range of product
Harmony XVE Optimum
product or component type
Indicator bank
beacon or indicator bank unit type
Illuminated unit
signalling type
Flashing
component name
XVE
light source
Integral LED, orange
bulb type
LED
[Us] rated supply voltage
230...240 V AC
Complementary
mounting diameter
70 mm
assembly style
Customer assembly
connections - terminals
Screw clamp terminals, <= 1 x 1.5 mm² with cable end
marking
CE
short-circuit protection
0,16 A
[Ui] rated insulation voltage
250 V IEC 60947-1
nominal voltage limit
0.85...1.1 Un IEC 60947-5-1
current consumption
< 25 mA
[Uimp] rated impulse withstand voltage
4 kV IEC 60947-1
luminance
800 cd/m²
flashing frequency
1 Hz
CAD overall width
70 mm
CAD overall height
52 mm
CAD overall depth
70 mm
net weight
0,077 kg
Environment
standards
EN/IEC 60947-1
EN/IEC 60947-5-1
product certifications
CCC
UL
CSA
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-25…55 °C
electrical shock protection class
Class I aluminium tube mounting IEC 61140
Class I plastic tube mounting IEC 61140
protective treatment
TC
IP degree of protection
IP40 any position except vertical position IEC 60529
IP42 vertical position IEC 60529
Contractual warranty
Garantii
18 months
