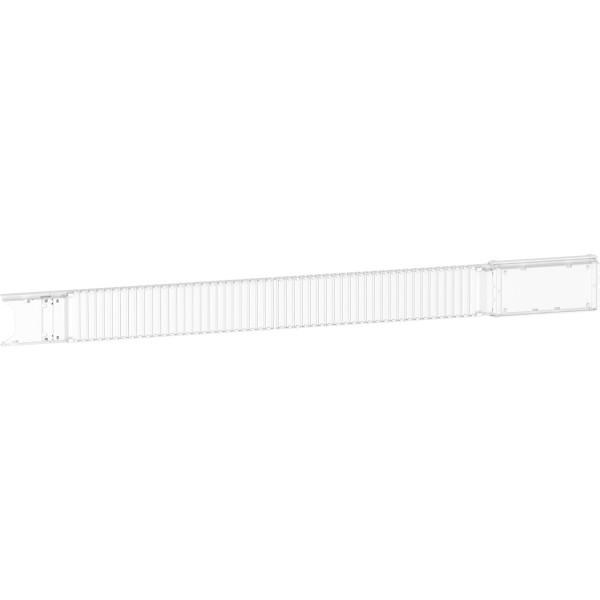

FLEXIBLE LENGTH 63A

Ülevaaded: 0

Tootekood: KNT100DF410

Quick Overview

Saadavus: Tellimisel

635,63 € (ilma KM-ta)

Details

Main
range of product
Canalis
product name
KN
product or component type
Busbar trunking
busbar description
Flexible length
product compatibility
KN
direction change type
2 dimensions
[Ie] rated operational current
100 A 35 °C
Complementary
device application
Low power distribution
thermal stress limit
8000 kA².s
maximum radiated magnetic field
186 pT
[Ue] rated operational voltage
230...500 V
[Uimp] rated impulse withstand voltage
6 kV
[Ui] rated insulation voltage
500 V
[Icw] rated short-time withstand current
2,8 kA
[Ipk] rated peak withstand current
14 kA
THDI
0…15 % 100 A
15…33 % 80 A
33…100 % 63 A
network frequency
50/60 Hz
control type
Communicating
number of circuits
1
mounting mode
By screws
standards
IEC 61439-6
IEC 60439-2
length
1 m
colour
White RAL 9001)
net weight
2,3 kg
Environment
IP degree of protection
IP55 IEC 60529
IK degree of protection
IK08 IEC 62262
ambient air temperature for operation
0…35 °C without derating
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Halogeensisu
Halogeenivaba toode
Contractual warranty
Garantii
18 months
