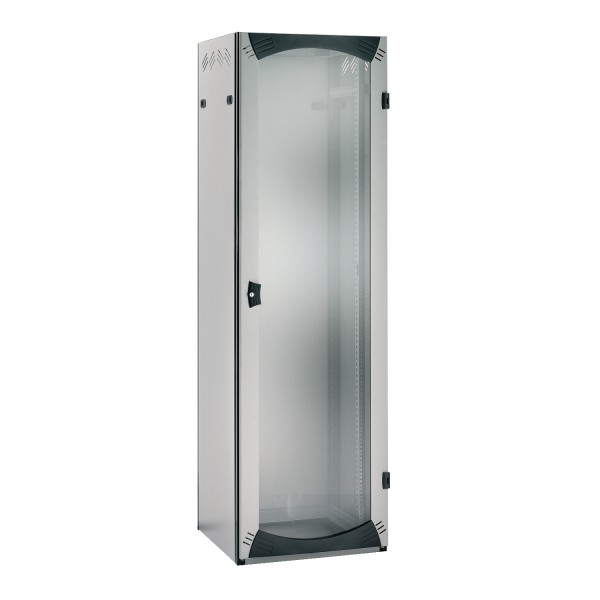

Floor-Standing Cabling Rack 42U W800D600 Fixed 19" Glazed Door R7035

Ülevaaded: 0

Tootekood: NSYVDA42U86B

Quick Overview

Saadavus: Tellimisel

1 514,22 € (ilma KM-ta)

Details

Main
range
Actassi
product name
Actassi VDA
product or component type
19" enclosure
device application
Cabling
applications
To mount 19" equipment
To protect network connectivity equipment
enclosure type
Network Cabinet
support equipment
2 x 19" uprights recessed of 120 mm from the front (pitch 25 mm)
front face
Glazed door
door type
Front glazed door - with 1 point locking system (key: 333) - reversible opening at 180 °
accessibility for operation
Top
Side
Front
Rear
removable parts
Front door removable toolless
Top blanking plate
Bottom blanking plate
Side panels removable toolless
Rear panel removable toolless
colour
Door: light grey (RAL 7035)
Panels: light grey (RAL 7035)
Top and bottom: light grey (RAL 7035)
Structure: dark grey (RAL 7011)
Complementary
device composition
1 x glazed door front
2 x panels side
2 x 19" uprights front
1 x assembled structure CBLX torx
1 x roof with removable blanking plate top
1 x panel rear
4 x levelling feets
load rating
400 kg static
250 kg dynamic
back face
Panel
side face
Panel
number of cut-out
1 cut-outbottom
1 cut-outtop side panel
1 cut-outtop - split in 3 parts
installation mode
Floor-standing
material
Sheet steel: structure
Sheet steel: door
Sekurit glass: door
Galvanized steel: upright
Sheet steel: panel
surface finish
Epoxy-polyester powder
width
800 mm
height
2000 mm
depth
600 mm
net weight
96 kg
number of rack unit
42U
Europe
Environment
IK degree of protection
IK08 conforming to IEC 62262
IP degree of protection
IP20 conforming to IEC 60529
standards
IEC 60297-3-100
EIA-310D
Offer Sustainability
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
 Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure
Circularity Profile
No need of specific recycling operations
Contractual warranty
Warranty
18 months
