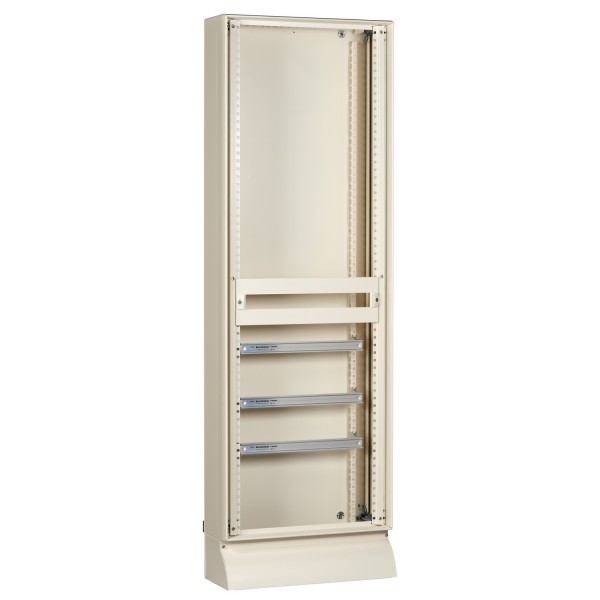

FLOOR-STANDING ENCLOSURE 9 ROWS + 6M FREE PRISMA PACK250 IP30

Ülevaaded: 0

Tootekood: 08074

Quick Overview

Saadavus: Tellimisel

477,97 € (ilma KM-ta)

Details

Main
range
Prisma
product name
Prisma Pack 250
IP degree of protection
IP43 with door, canopy and IP43 gasket
IP30 without door
IP40 with door
IP41 with door and canopy
product or component type
Enclosure
enclosure type
Modular enclosure delivered in kit form
enclosure mounting
Surface
Flush with kit
type of front plate
Modular
Free 6M zone to be ordered separately
number of vertical modules [50 mm]
33
number of 18 mm modules per row
24
provided equipment
2 x earthing kit
1 x floor stand enclosure
9 x front plate
9 x modular rail
Complementary
installation description
Pack enclosure 600 mm
[Ui] rated insulation voltage
1000 V on main rear busbars IEC 61439-2
[In] rated current
250 A 40 °C IEC 61439-2
[Icw] rated short-time withstand current
25 kA 1 s IEC 61439-2
[Ipk] rated peak withstand current
53 kA IEC 61439-2
network frequency
50/60 Hz
number of horizontal rows
9
enclosure material
Enclosure treated sheet steel
additional information
Can be combined side by side
quantity per set
Set of 1
height
1830 mm
width
600 mm
depth
205 mm
net weight
34,7 kg
surface finish
Smooth
Matt
colour
White RAL 9001)
Environment
IK degree of protection
IK07 without door EN/IEC 62262
IK08 with door
protective treatment
Electrophoresis treatment and hot-polymerised polyester epoxy powder
standards
IEC 62208
IEC 61439-2
IEC 61439-1
mechanical robustness
Seismic tests - 2.5G IEC 60068-2-57
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus
Halogeensisu
Halogeenivaba toode
Contractual warranty
Garantii
18 months
