Details
Characteristics
| range of product | Harmony XB5 | |
|---|---|---|

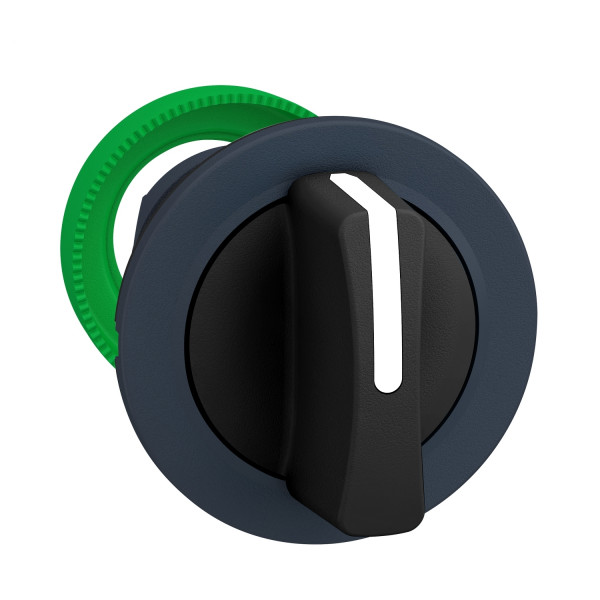

| product or component type | Head for selector switch | |
| device short name | ZB5 | |
| bezel material | Dark grey plastic | |
| mounting diameter | 30 mm | |
| head type | Built-in-flush | |
| sale per indivisible quantity | 1 | |
| shape of signaling unit head | Round | |
| type of operator | stay put | |
| operator profile | Black standard handle | |
| operator position information | 3 positions +/- 45° |
| CAD overall width | 37 mm | |
|---|---|---|
| CAD overall height | 37 mm | |
| CAD overall depth | 46 mm | |
| net weight | 0.031 kg | |
| mechanical durability | 1000000 cycles | |
| electrical composition code | C3 for <6 contacts using single blocks in front mountingC4 for <6 contacts using single and double blocks in front mountingC5 for <5 contacts using single blocks in front mountingC6 for <5 contacts using single and double blocks in front mountingC7 for <4 contacts using single blocks in front mountingC8 for <4 contacts using single and double blocks in front mountingC11 for <3 contacts using single blocks in front mountingSF1 for <3 contacts using single blocks in front mounting | |
| device presentation | Basic element |
| protective treatment | TH | |
|---|---|---|
| ambient air temperature for storage | -40…70 °C | |
| ambient air temperature for operation | -40…70 °C | |
| overvoltage category | Class II conforming to IEC 60536 | |
| IP degree of protection | IP66 conforming to IEC 60529IP67 conforming to IEC 60529IP69KIP69 | |
| NEMA degree of protection | NEMA 13NEMA 4X | |
| resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m | |
| IK degree of protection | IK03 conforming to IEC 50102 | |
| standards | UL 508EN/IEC 60947-1EN/IEC 60947-5-4JIS C8201-5-1EN/IEC 60947-5-1CSA C22.2 No 14JIS C8201-1 | |
| product certifications | UL listedGLDNVLROS (Lloyds register of shipping)BVCSARINA | |
| vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 | |
| shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile |
