Details
Characteristics
| range of product | Harmony XB4 | |
|---|---|---|

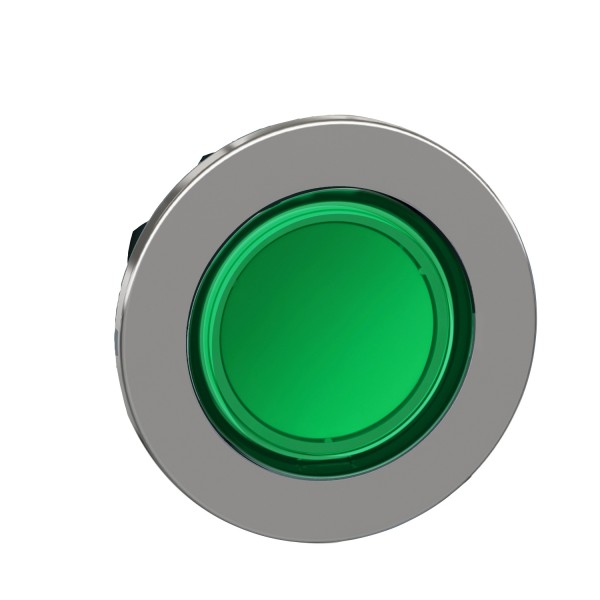

| product or component type | Head for pilot light | |
| product compatibility | Integral LED | |
| device short name | ZB4F | |
| bezel material | Chromium plated metal | |
| mounting diameter | 30.5 mm | |
| sale per indivisible quantity | 1 | |
| head type | Built-in-flush | |
| shape of signaling unit head | Round | |
| cap/operator or lens colour | Green | |
| operator additional information | With plain lens |
| CAD overall width | 36.6 mm | |
|---|---|---|
| CAD overall height | 36.6 mm | |
| CAD overall depth | 31 mm | |
| net weight | 0.058 kg | |
| resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m | |
| electrical composition code | P1 in front mounting with integral LEDP2 in front mounting with integral LED and transformer | |
| device presentation | Basic element |
| protective treatment | TH | |
|---|---|---|
| ambient air temperature for storage | -40…70 °C | |
| ambient air temperature for operation | -40…70 °C | |
| overvoltage category | Class I conforming to IEC 60536 | |
| IP degree of protection | IP66 conforming to IEC 60529IP67 conforming to IEC 60529IP69 conforming to IEC 60529IP69K conforming to ISO 20653Type 13 conforming to UL 50 EType 12 conforming to UL 50 EType 4 conforming to UL 50 EType 4X conforming to UL 50 E | |
| IK degree of protection | IK06 conforming to IEC 50102 | |
| standards | EN/IEC 60947-5-4EN/IEC 60947-5-1UL 508CSA C22.2 No 14EN/IEC 60947-1JIS C8201-5-1CEJIS C8201-1 | |
| product certifications | UL listedCSACCCEAC | |
| vibration resistance | 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-62 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6 | |
| shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-2725 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27 |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile |
| Warranty | 18 months |
|---|
- Be the first to review this product
Write Your Own Review
