Details
Characteristics
| range of product | Harmony XB5 | |
|---|---|---|

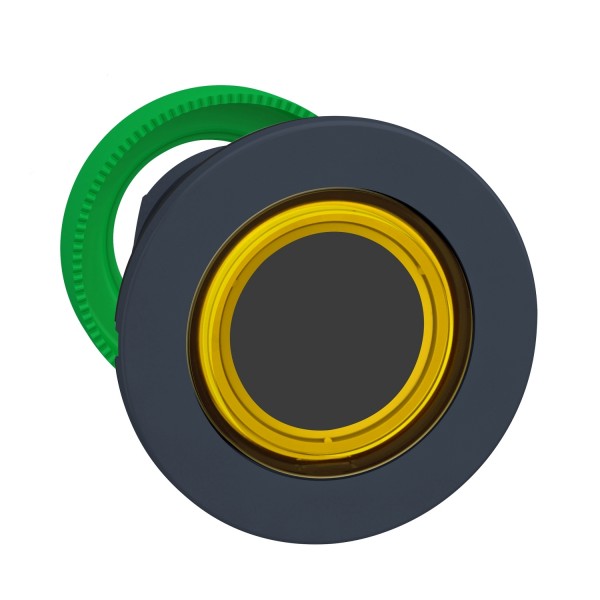

| product or component type | Head for illuminated push-button | |
| device short name | ZB5 | |
| product compatibility | Integral LED | |
| bezel material | Dark grey plastic | |
| mounting diameter | 30 mm | |
| sale per indivisible quantity | 1 | |
| head type | Built-in-flush | |
| shape of signaling unit head | Round | |
| type of operator | spring return | |
| operator profile | Yellow flush, unmarked | |
| operator additional information | With illuminated ring |
| CAD overall width | 37 mm | |
|---|---|---|
| CAD overall height | 37 mm | |
| CAD overall depth | 30 mm | |
| net weight | 0.017 kg | |
| resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m | |
| mechanical durability | 10000000 cycles | |
| main group | Illum push-button | |
| group of product | Flush push with ring illum LED | |
| cap/operator or lens colour | Yellow | |
| marking | Unmarked | |
| electrical composition code | M1 for <6 contacts using single blocks in front mounting with integral LEDM2 for <6 contacts using single and double blocks in front mounting with integral LEDM6 for <2 contacts using single blocks in front mounting with integral LED and transformerM10 for <2 contacts using single blocks in front mounting with integral LEDMF1 for <2 contacts using single blocks in front mounting with integral LED |
| protective treatment | TC | |
|---|---|---|
| ambient air temperature for storage | -40…70 °C | |
| ambient air temperature for operation | -40…70 °C | |
| overvoltage category | Class II conforming to IEC 60536 | |
| IP degree of protection | IP66 conforming to IEC 60529IP67 | |
| NEMA degree of protection | NEMA 13NEMA 4X | |
| IK degree of protection | IK03 conforming to EN 50102 | |
| standards | EN/IEC 60947-5-4EN/IEC 60947-1GB 14048.5JIS C8201-5-1EN/IEC 60947-5-1CSA C22.2 No 14UL 508JIS C8201-1 | |
| product certifications | LROS (Lloyds register of shipping)GLRINABVDNVCSAUL listed | |
| vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 | |
| shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile |
