  • foot switch XPE-M - w/o cover - metal-orange - 2NC+1NO - protection against dust

Product was successfully added to your shopping cart.

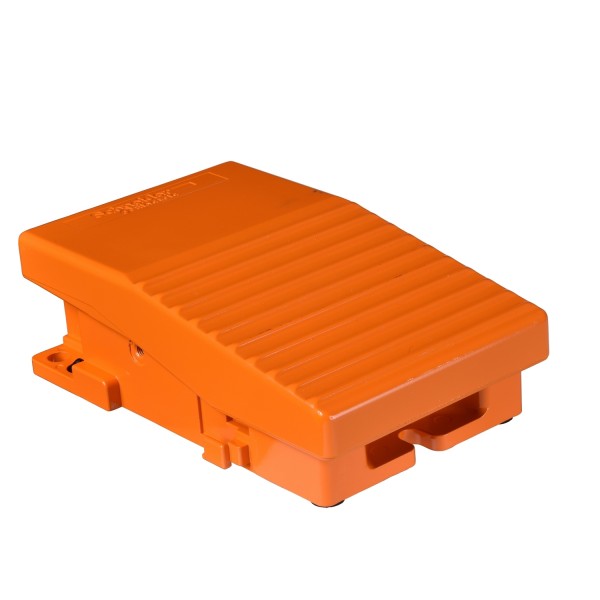

foot switch XPE-M - w/o cover - metal-orange - 2NC+1NO - protection against dust

Ülevaaded: 0

Tootekood: XPER111EX

Quick Overview

Saadavus: Ei saa enam tellida

423,92 € (ilma KM-ta)

Details

Main
range of product
Harmony XPE
product or component type
Foot switch
material
Metal
foot switch type
Single foot switch
device short name
XPER
protective cover
Without
trigger mechanism
Without trigger mechanism
contact operation
1 step
contacts type and composition
2 NC + 1 NO
colour
Orange
Complementary
positive opening
With conforming to EN/IEC 60947-5-1 appendix K
connections - terminals
Screw clamp terminal, <= 1 x 2.5 mm² with or without cable end
Screw clamp terminal, <= 2 x 1.5 mm² with or without cable end
cable entry
2 tapped entries for Pg 16
marking
II2 D-Ex tD A21 IP65 T85°C
mechanical durability
5000000 cycles
[Ie] rated operational current
3 A at 240 V, AC-15, A300
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A
[Ui] rated insulation voltage
300 V conforming to UL 508
500 V (pollution degree 3) conforming to EN/IEC 60947-1
500 V (pollution degree 3) conforming to NF C 20-040 group C
500 V (pollution degree 3) conforming to VDE 0110 group C
300 V conforming to CSA C22.2 No 14
[Uimp] rated impulse withstand voltage
EN/IEC 60947-1 6 kV
IEC 60664 6 kV
maximum resistance across terminals
0.025 mOhm conforming to IEC 60255-7 category 3
0.025 mOhm conforming to NF C 93-050 method A
short-circuit protection
10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
10 A cartridge fuse type gG conforming to VDE 0660-200
width
104 mm
depth
172 mm
height
59 mm
Environment
standards
ATEX D 94/9/CE
EN 50281-1-1
IEC 61241-0
IEC 61241-1
EN 50014
dust zone
Zone 21 - 22
product certifications
INERIS 04ATEX0025
protective treatment
TC
ambient air temperature for operation
-20…60 °C
ambient air temperature for storage
-40…70 °C
vibration resistance
15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
shock resistance
150 gn conforming to NF E 09-031
20 gn conforming to IEC 60068-2-27
electrical shock protection class
Class I conforming to EN/IEC 61140
Class I conforming to NF C 20-030
IP degree of protection
IP66
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
