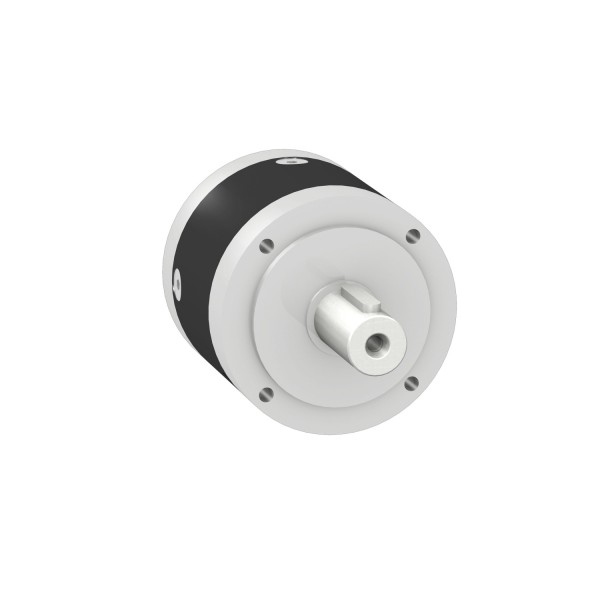

gearbox straight teeth GBX - Ø 120 mm - reduction 25:1 < 9 arc.min - 230 N.m

Product was successfully added to your shopping cart.

gearbox straight teeth GBX - Ø 120 mm - reduction 25:1 < 9 arc.min - 230 N.m

Tootekood: GBX120025K

Quick Overview

Saadavus: Tellimisel

863,89 € (ilma KM-ta)

Qty:

Details

Main
range compatibility	Lexium 62 ILM Lexium SD3 Lexium 52 Lexium 32 Lexium 62 Lexium 28 Lexium 32i
product or component type	Planetary gearbox
gear box type	Straight teeth
device short name	GBX
product compatibility	BMI (70 mm, 2 motor stacks) BMI (70 mm, 3 motor stacks) BMH (70 mm, 3 motor stacks) BSH (70 mm, 3 motor stacks) BMH (100 mm, 1 motor stacks) BSH (100 mm, 1 motor stacks) BRS3 BCH2 (100 mm, 1 motor stacks) BCH2 (130 mm, 1 motor stacks) SH3 MH3 ILM
gearbox external diameter	120 mm
reduction ratio	25:1

Complementary
maximum torsional backlash	9 arc.min
torsional rigidity	13 N.m/arcmin
housing colour	Black
housing material	Black anodized aluminium
shaft material	C 45
additional information	Lubricated for life
service life in hours	30000 h at 100 rpm at 30 °C
mounting position	Any position
efficiency	94 %
maximum radial force Fr	1500 N at 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C
maximum axial force Fa	2100 N at 100 rpm, during 30000 hour at 30°C
moment of inertia	1.49 kg.cm²
continuous output torque	230 N.m at 100 rpm at 30 °C
maximum output torque	368 N.m at 100 rpm at 30 °C
net weight	8 kg

Environment
noise level	65 dB at 1 m, no-load
IP degree of protection	Shaft output: IP54
ambient temperature for operation	-25…90 °C

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile

Contractual warranty
Warranty	18 months
