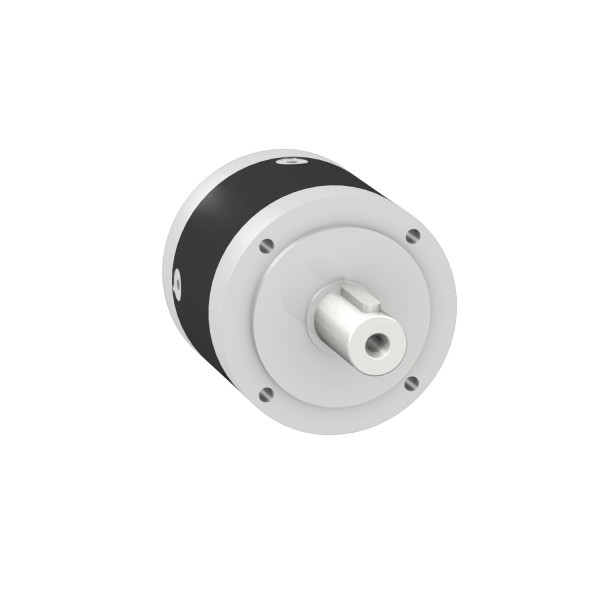

gearbox straight teeth GBX - Ø 80 mm - reduction 40:1 < 9 arc.min - 110 N.m

Product was successfully added to your shopping cart.

gearbox straight teeth GBX - Ø 80 mm - reduction 40:1 < 9 arc.min - 110 N.m

Tootekood: GBX080040K

Quick Overview

Saadavus: Tellimisel

485,16 € (ilma KM-ta)

Qty:

Details

Main
range compatibility	Lexium 28 Lexium 32 Lexium 62 ILM Lexium 62 Lexium 52
product or component type	Planetary gearbox
gear box type	Straight teeth
device short name	GBX
product compatibility	BMH (70 mm, 1 motor stacks) BSH (70 mm, 1 motor stacks) BCH2 (80 mm, 1 motor stacks) SH3 MH3 ILM
gearbox external diameter	80 mm
reduction ratio	40:1

Complementary
maximum torsional backlash	9 arc.min
torsional rigidity	6.5 N.m/arcmin
housing colour	Black
housing material	Black anodized aluminium
shaft material	C 45
additional information	Lubricated for life
service life in hours	30000 h at 100 rpm at 30 °C
mounting position	Any position
efficiency	94 %
maximum radial force Fr	650 N at 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C
maximum axial force Fa	1200 N at 100 rpm, during 30000 hour at 30°C
moment of inertia	0.39 kg.cm²
continuous output torque	110 N.m at 100 rpm at 30 °C
maximum output torque	176 N.m at 100 rpm at 30 °C
net weight	2.6 kg

Environment
noise level	60 dB at 1 m, no-load
IP degree of protection	Shaft output: IP54
ambient temperature for operation	-25…90 °C

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile

Contractual warranty
Warranty	18 months
