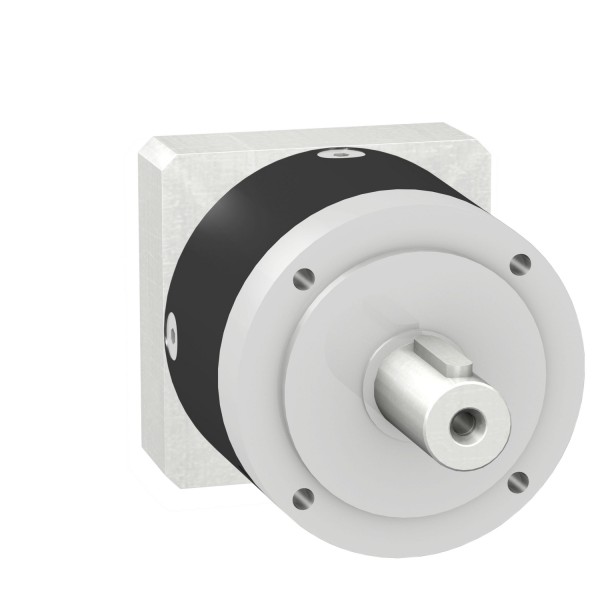

gearbox with straight teeth GBX- Ø 160 mm- reduction 4:1- < 6arcmin- 450 N.m

Product was successfully added to your shopping cart.

gearbox with straight teeth GBX- Ø 160 mm- reduction 4:1- < 6arcmin- 450 N.m

Tootekood: GBX1600041402F

Quick Overview

Saadavus: Tellimisel

2 445,98 € (ilma KM-ta)

Qty:

Details

Main
range compatibility	Lexium 15 Lexium 32
product or component type	Planetary gearbox
gear box type	Straight teeth
device short name	GBX
gearbox external diameter	160 mm
product compatibility	BSH1402...
reduction ratio	4:1

Complementary
maximum torsional backlash	6 arc.min
torsional rigidity	38 N.m/arcmin
housing colour	Black
housing material	Black anodized aluminium
shaft material	C 45
additional information	Lubricated for life
service life in hours	30000 h 100 rpm 30 °C
efficiency	96 %
mounting position	Any position
maximum radial force Fr	4200 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C 6000 N 100 rpm, force applied at mid-distance from output shaft during 10000 hour at 30 °C
maximum axial force Fa	6000 N 100 rpm, during 30000 hour at 30°C 8000 N 100 rpm, during 10000 hour at 30°C
moment of inertia	7,78 g.cm²
continuous output torque	450 N.m 100 rpm 30 °C
maximum output torque	720 N.m 100 rpm 30 °C
net weight	18 kg

Environment
noise level	70 dB 1 m, no-load
IP degree of protection	Shaft output IP54
ambient temperature for operation	-25…90 °C

Contractual warranty
Garantii	18 months
