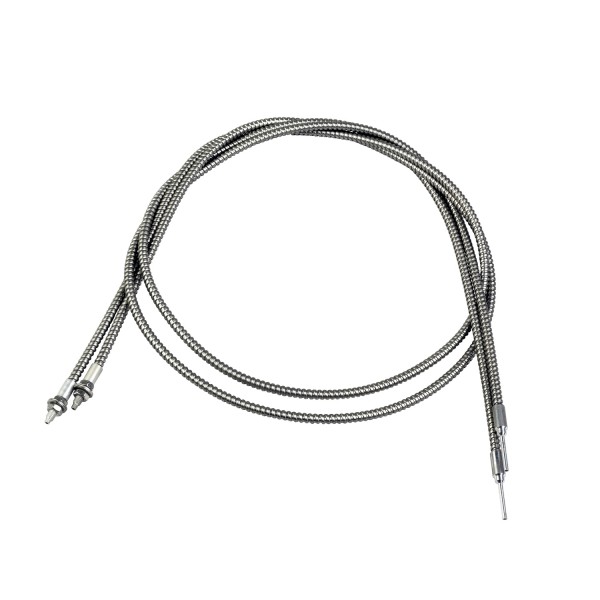

glass fibre optic for sensor - thru-beam - high temp - metal - 1m - Sn200mm

Ülevaaded: 0

Tootekood: XUFS2020

Quick Overview

Saadavus: Tellimisel

247,56 € (ilma KM-ta)

Details

Main
range of product
OsiSense XU
sensor name
XUF
[Sn] nominal sensing distance
0,2 m
0,2 m XUFZ02
1,5 m XUFZ01
end fitting type
, standard thread end fitting
Complementary
electronic sensor type
Photo-electric sensor
sensor design
Fiber design
product destination
XUDA
optic fiber material
Glass
sheath material
PE
detection system
Thru beam
optic fiber use
High temperatures
optic fiber length
1 m
external diameter
5 mm
minimum bending radius
90 mm
thread type
M4
optic fiber core
1 x Ø 1 mm
net weight
0,07 kg
Environment
ambient air temperature for operation
-40…180 °C
ambient air temperature for storage
-40…180 °C
vibration resistance
+/- 1.5 mm 10…55 Hz)IEC 60068-2-6
7 gn 10…55 Hz)IEC 60068-2-6
shock resistance
30 gn 11 ms) IEC 60068-2-27
IP degree of protection
IP64 IEC 60529
IP641 NF C 20-010
Offer Sustainability
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Contractual warranty
Garantii
18 months
