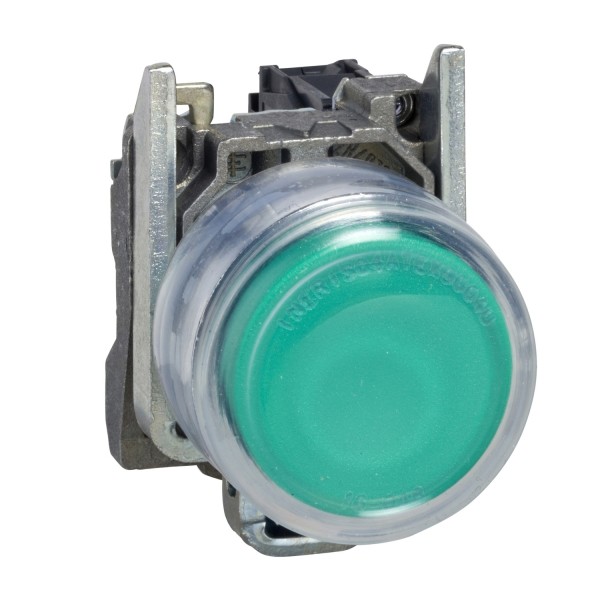

green illuminated pushbutton - Ø 22 - 24 V - ATEX

Ülevaaded: 0

Tootekood: XB4BP383B5EX

Quick Overview

Saadavus: Tellimisel

67,90 € (ilma KM-ta)

Details

Main
range of product
Harmony XB4
product or component type
Complete illuminated push-button
device short name
XB4
bezel material
Chromium plated metal
fixing collar material
Zamak
head type
Standard
mounting diameter
22 mm
sale per indivisible quantity
1
dust zone
Zone 21 - 22
operator profile
Green flush
operator additional information
Booted (clear silicon)
contacts type and composition
1 NO
Complementary
resistance to high pressure washer
7000000 Pa 55 °C 0.1 m
device mounting
Fixing hole 22,5 mm 22.3 +0.4/0 EN/IEC 60947-1
fixing center
>= 30 x 40 mm support panel)
fixing mode
Single screw 0,8…1,2 N.m
embedding depth
43 mm
marking
Ex tb IIIC
shape of signaling unit head
Round
contact operation
Slow-break
positive opening
Without
operating travel
2,6 mm NO changing electrical state)
4,3 mm total travel)
operating force
3,8 N NO changing electrical state
mechanical durability
5000000 cycles
connections - terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
tightening torque
0,8…1,2 N.m EN 60947-1
shape of screw head
Cross Philips no 1
Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mm
contacts material
Silver alloy (Ag/Ni)
short-circuit protection
10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current
10 A EN/IEC 60947-5-1
[Ui] rated insulation voltage
600 V 3)EN/IEC 60947-1
[Uimp] rated impulse withstand voltage
6 kV EN/IEC 60947-1
[Ie] rated operational current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1
6 A 120 V, AC-15, A600 EN/IEC 60947-5-1
0,1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
0,27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1
0,55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1
1,2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
electrical durability
1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C
1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C
1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C
1000000 cycles DC-13, 0,2 A 110 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C
1000000 cycles DC-13, 0,5 A 24 V 3600 cyc/h 0,5 EN/IEC 60947-5-1 appendix C
electrical reliability
Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4
Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
signalling type
Steady
light source
Integral LED
[Us] rated supply voltage
24 V AC/DC 50/60 Hz
supply voltage limits
19,2…30 V DC
21,6…26,4 V AC
current consumption
18 mA
service life
100000 h at rated voltage and 25 °C
surge withstand
1 kV IEC 61000-4-5
Environment
protective treatment
TH
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-40…70 °C
overvoltage category
I IEC 60536
IP degree of protection
IP65 IEC 60529
NEMA degree of protection
NEMA 13
NEMA 4X
IK degree of protection
IK05 IEC 50102
standards
EN 60079-0:2009
EN 60079-31:2009
EN 61000-6-2
IEC 60079-0:2007
IEC 60079-31:2008
directives
94/9/EC - ATEX directive
product certifications
INERIS 04ATEX9004U
vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
resistance to fast transients
2 kV IEC 61000-4-4
resistance to electromagnetic fields
10 V/m IEC 61000-4-3
resistance to electrostatic discharge
6 kV on contact (on metal parts) IEC 61000-4-2
8 kV in free air (in insulating parts) IEC 61000-4-2
electromagnetic emission
Class B IEC 55011
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
