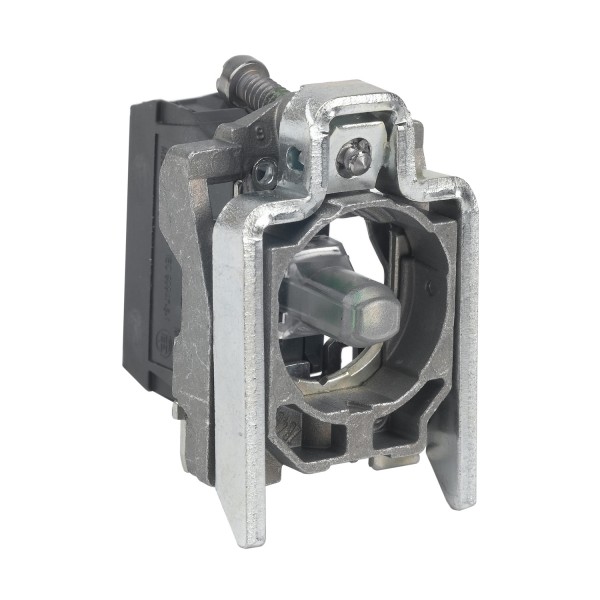

green pilot light body integral LED

Ülevaaded: 0

Tootekood: ZB4BVG35

Quick Overview

Saadavus: Ei saa enam tellida

13,94 € (ilma KM-ta)

Details

Main
range of product
Harmony XB4
product or component type
Complete body/light block assembly
device short name
ZB4
fixing collar material
Zamak
sale per indivisible quantity
1
light source
Protected LED
bulb base
Integral LED
light source colour
Green
[Us] rated supply voltage
110...120 V AC at 50/60 Hz
Complementary
CAD overall width
30 mm
CAD overall height
47 mm
CAD overall depth
37 mm
terminals description ISO n°1
(X1-X2)PL
net weight
0.053 kg
[Ui] rated insulation voltage
250 V (pollution degree 3) conforming to EN 60947-1
[Uimp] rated impulse withstand voltage
EN 60947-1 4 kV
signalling type
Steady
current consumption
14 mA
service life
100000 h at rated voltage and 25 °C
surge withstand
1 kV conforming to IEC 61000-4-5
device presentation
Basic sub-assemblies
Environment
protective treatment
TH
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-40…70 °C
electrical shock protection class
Class I conforming to IEC 60536
standards
JIS C8201-5-1
EN/IEC 60947-1
EN/IEC 60947-5-4
CSA C22.2 No 14
UL 508
EN/IEC 60947-5-1
EN/IEC 60947-5-5
JIS C8201-1
product certifications
UL listed
CSA
vibration resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
resistance to fast transients
2 kV conforming to IEC 61000-4-4
resistance to electromagnetic fields
10 V/m conforming to IEC 61000-4-3
resistance to electrostatic discharge
6 kV on contact (on metal parts) conforming to IEC 61000-2-6
8 kV in free air (in insulating parts) conforming to IEC 61000-2-6
electromagnetic emission
Class B conforming to IEC 55011
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
