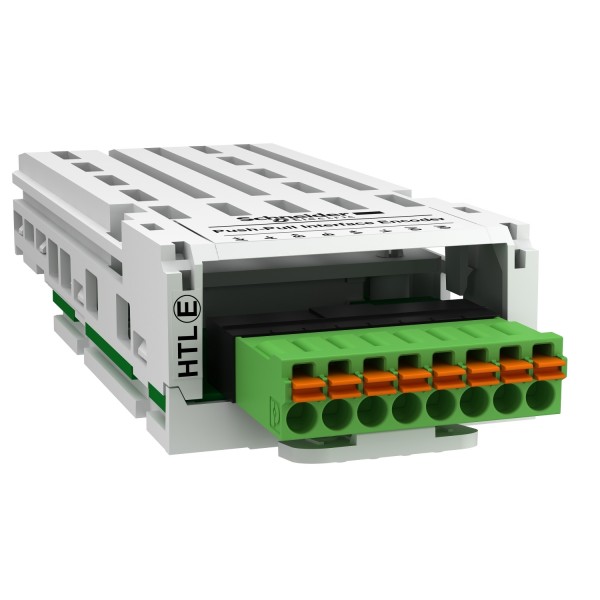

HTL encoder interface module

Details

Main
range of product	Altivar
product or component type	Encoder interface module
range compatibility	Altivar Process ATV900 Altivar Process Modular Altivar Machine ATV340
encoder type	High threshold logic (HTL)
[Us] rated supply voltage	12 V DC 15 V DC 24 V DC

Complementary
maximum supply current	0.2 A at 12 V DC 0.175 A at 15 V DC 0.1 A at 24 V DC
protection type	Short-circuit protection Overload protection
maximum cable distance between devices	500 m
maximum operating frequency	12 kHz
input signal	Push-pull differential: A/AB/B Push-pull single ended: AB Push-pull single ended: A Open collector differential: A/AB/B Open collector PNP: AB Open collector NPN: AB Open collector PNP: A Open collector NPN: A
connector type	1 removable spring connector
net weight	0.15 kg

Offer Sustainability
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
