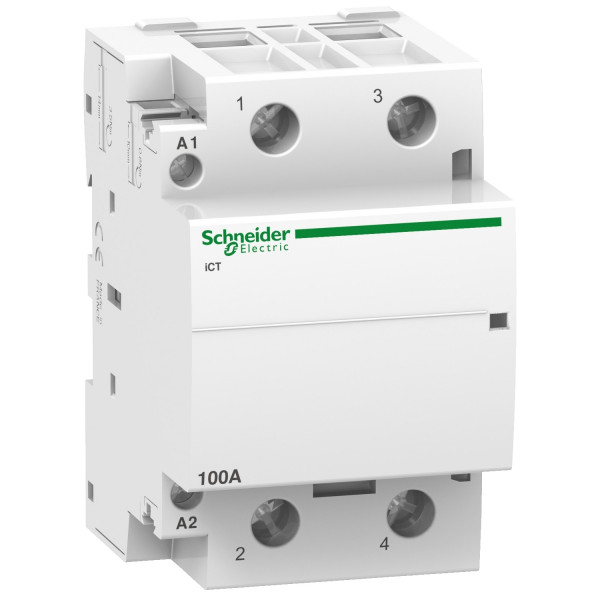

iCT 100A 2NO 220...240V 50Hz contactor

Details

Main
range of product	Acti 9
product name	Acti 9 iCT
product or component type	Contactor
device short name	ICT
device application	Heating-low inductive load
Poles	2P
[Ie] rated operational current	100 A AC-7A
pole contact composition	2 NO
network type	AC
utilisation category	AC-1 conforming to EN 60947-4-1 AC-7A conforming to EN 61095 AC-7A conforming to IEC 61095 AC-7A conforming to UTE C 61-481 AC-1 conforming to IEC 60947-4-1
control type	Remote control
[Uc] control circuit voltage	220...240 V AC 50 Hz

Complementary
network frequency	50 Hz
[Ue] rated operational voltage	250 V AC 50 Hz
maximum power	AC-7A: 2.1 W at 250 V AC 50 Hz
[Ui] rated insulation voltage	500 V AC 50 Hz
[Uimp] rated impulse withstand voltage	4 kV
control signal type	Maintained
switching frequency	100 switching operations/day
local signalling	Action indicator
hold-in power consumption in VA	6.5 VA
inrush power in VA	53 VA
mounting mode	Clip-on
mounting support	35 mm symmetrical DIN rail
9 mm pitches	6
height	85 mm
width	54 mm
depth	60 mm
colour	White
electrical durability	30000 cycles EN 61095 250 V 16 A AC 50 Hz AC-7A 30000 cycles UTE C 61-481 250 V 6 A AC 50 Hz AC-7A 30000 cycles IEC 61095 250 V AC 50 Hz AC-7A
connections - terminals	Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigid Control circuit: tunnel type terminals1 cable(s) 1.5…2.5 mm² rigid Control circuit: tunnel type terminals2 cable(s) 1.5…2.5 mm² flexible Power circuit: tunnel type terminals1 cable(s) 6…35 mm² solid or flexible
tightening torque	Power circuit: 3.5 N.m Control circuit: 0.8 N.m A1 / A2
product compatibility	IACTs IACTp IATEt IACTc
compatibility code	ICT
market segment	Small commercial Residential

Environment
standards	UTE C 61-481 IEC 61095 EN 61095
noise level	30 dB
heat dissipation	2.1 W at 50/60 Hz
IP degree of protection	IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
pollution degree	2
tropicalisation	2 conforming to EN 60947-4-1
relative humidity	95 % at 55 °C
operating altitude	2000 m
ambient air temperature for operation	-5…60 °C
ambient air temperature for storage	-40…70 °C

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
