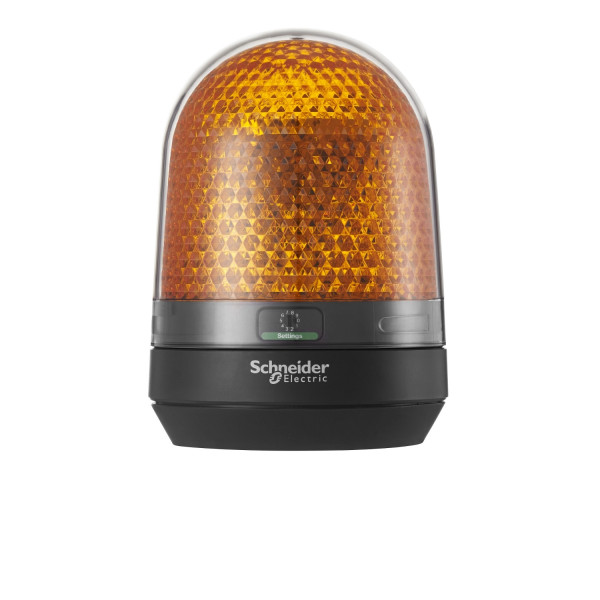

Illuminated beacon without buzzer, orange, Ø100, integral LED, 100...230 V AC

Details

Main
range of product	Harmony XVR
product or component type	Beacon
device short name	XVR3
beacon or indicator bank unit type	LED unit
mounting diameter	100 mm
light source	LED, orange
device application	Automated guided vehicle (AGV) Forklift Bulldozer

Complementary
signalling type	Blinking Rotating Flashing
assembly style	Ready assembled
material	PC (polycarbonate): lenses PBT (polybutylene terephthalate) + PC (polycarbonate): body EPDM (ethylene propylene diene monomer): base
[Us] rated supply voltage	100...230 V AC
[Ue] rated operational voltage	90...253 V AC
inrush current	0.5 A
power consumption in W	2.9 W
marking	CE
installation direction	Upright indoor Sideways indoor Inverted indoor Upright outdoor
electrical insulation class	Class II
current consumption	500 mA
length	100 mm
width	100 mm
height	139 mm
net weight	0.484 kg

Environment
product certifications	CCC
ambient air temperature for operation	-10…50 °C
ambient air temperature for storage	-20…70 °C
relative humidity	35…85 % without condensation
vibration resistance	4.6 gn (sideways) 4.6 gn (inverted) 4.6 gn (upright)
IP degree of protection	IP65 (upright) IP23 (sideways) IP23 (inverted)
