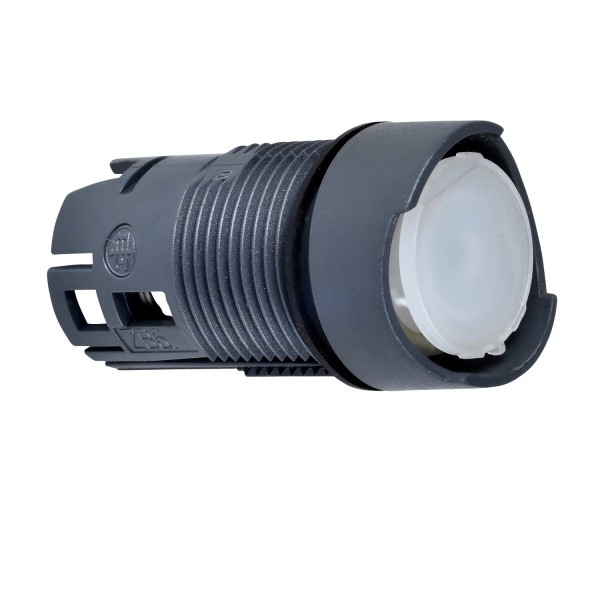

illuminated pushbutton head Ø16 latching without cap for integral LED

Product was successfully added to your shopping cart.

illuminated pushbutton head Ø16 latching without cap for integral LED

Tootekood: ZB6AF0

Quick Overview

Saadavus: Tellimisel

9,45 € (ilma KM-ta)

Qty:

Details

Main
range of product	Harmony XB6
product or component type	Head for illuminated push-button
product compatibility	Integral LED
device short name	ZB6
bezel material	Plastic
mounting diameter	16 mm
sale per indivisible quantity	1
shape of signaling unit head	Round
type of operator	latching
operator profile	without cap

Complementary
CAD overall width	18 mm
CAD overall height	18 mm
CAD overall depth	33 mm
net weight	0.016 kg
resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
mechanical durability	300000 cycles

Environment
protective treatment	TC
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-25…70 °C
electrical shock protection class	Class II conforming to IEC 61140
IP degree of protection	IP65 conforming to IEC 60529
NEMA degree of protection	NEMA 13 conforming to UL 50 NEMA 4 conforming to UL 50 NEMA 4X conforming to UL 50 NEMA 13 conforming to CSA C22.2 No 94 NEMA 4 conforming to CSA C22.2 No 94 NEMA 4X conforming to CSA C22.2 No 94
standards	EN/IEC 60947-5-1 CSA C22.2 No 14 JIS C 852 JIS C8201-5-1 EN/IEC 60947-5-5 EN/IEC 60947-1 UL 508 JIS C8201-1
product certifications	GOST CCC CSA UL
vibration resistance	+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information

Contractual warranty
Warranty	18 months
