Illuminated Switch-5 Function keys with multi-color LEDs backlit

Product was successfully added to your shopping cart.

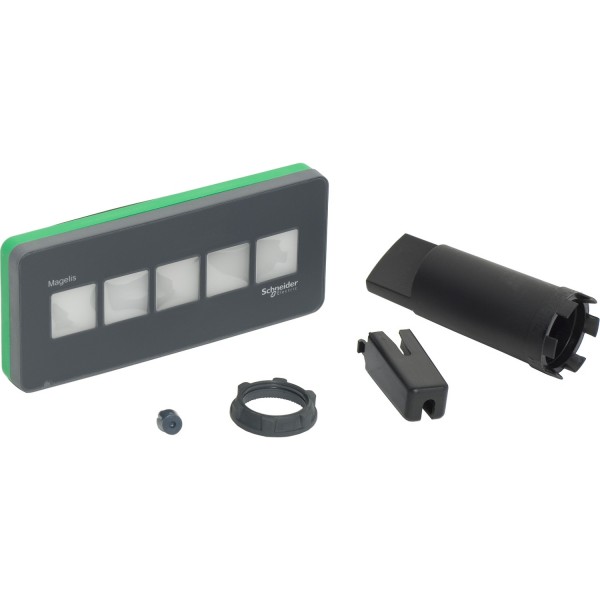

Illuminated Switch-5 Function keys with multi-color LEDs backlit

Tootekood: HMIZRA1

Quick Overview

Saadavus: Tellimisel

189,77 € (ilma KM-ta)

Qty:

Details

Main
range of product	Harmony HMIZ
product or component type	Illuminated USB switch
product compatibility	XBTGC - controller panel XBTGT2... - advanced touch panel HMISTO - touch panel HMISCU - touch panel XBTGT6... - advanced touch panel HMIGTW - advanced touch panel XBTGK - graphic display XBTGT4... - advanced touch panel XBTGT5... - advanced touch panel XBTGT7... - advanced touch panel HMISTU - touch panel HMIGTO - advanced touch panel HMIPSP - S-Panel PC HMIPSO - S-Panel PC HMIBMU - Modular Box PC HMIBMP - Modular Box PC HMIBMO - Modular Box PC HMIBMI - Modular Box PC
device application	Food and beverage Industrial machines
provided equipment	1 x user manual 1 x USB type B cable clamp 1 x fixing nut 1 x tightening wrench 1 x anti-rotation tee 1 x gasket 1 x insert label 1 x USB cable type A/B 1 m

Complementary
software designation	Vijeo Designer >= V6.1 SP2
connector type	USB type B
control type	5 push-buttons multi-colour backlit LED
colour of cover	Front dark grey
[Us] rated supply voltage	5 V DC USB 2.0
supply voltage limits	4,75…5,25 V DC
power consumption in W	2 W
shock resistance	147 m/s²3 chocks in each direction X, Y and Z IEC 61131-2
electromagnetic compatibility	Electrostatic discharge immunity test 8 kV air discharge) IEC 61000-4-2 Electrostatic discharge immunity test 6 kV contact discharge) IEC 61000-4-2 Electrical fast transient/burst immunity test 2 kV power ports) IEC 61000-4-4 Electrical fast transient/burst immunity test 1 kV signal ports) IEC 61000-4-4
mounting location	Flat surface
quantity per set	1 piece
height	54 mm
width	122 mm
depth	28 mm
net weight	0,11 kg

Environment
ambient air temperature for storage	-20…60 °C
relative humidity	10…90 % 0…55 °C non-condensing
pollution degree	2
environmental characteristic	Corrosive gas free
operating altitude	<= 2000 m
vibration resistance	3.5 mm 5…9 Hz)IEC 61131-2
IP degree of protection	IP65 front panel (in enclosure))
NEMA degree of protection	NEMA 4X indoor installation NEMA 13 enclosed outdoor
standards	ROHS directive 2002/95/EC CSA C22.2 No 142 UL 508 CSA C22.2 No 213 WEEE directive 2002/96/EC RoHS China SJ/T 11363-2006 EN 61000-6-4 ANSI/ISA 12.12.01 EN 61000-6-2 EMC 2004/108/EC
product certifications	GOST UL/cUL listed C-Tick CE
level or class	Class I Division 2 Groups A/B/C/D

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
