Details
Characteristics

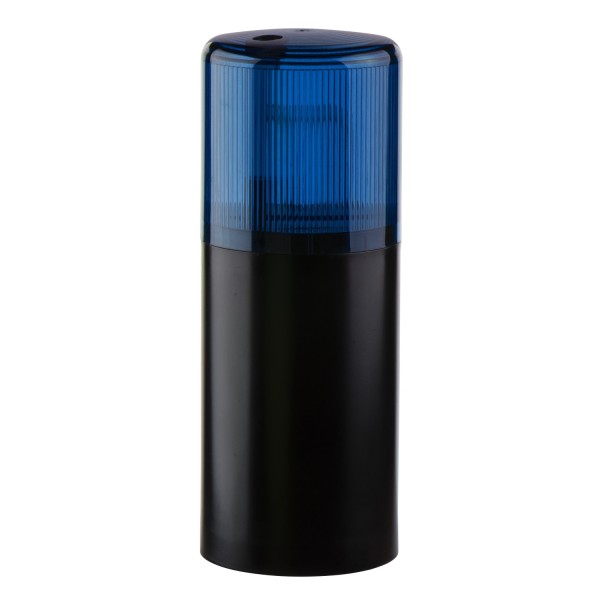

| range of product | Harmony XVD Application | |
|---|---|---|
| product or component type | Indicator bank | |
| beacon or indicator bank unit type | Illuminated unit | |
| signalling type | Flashing | |
| mounting diameter | 70 mm | |
| component name | XVD | |
| material | Polycarbonate | |
| light source | Integral flash discharge tube, blue | |
| bulb type | Flash discharge tube | |
| [Us] rated supply voltage | 24 V AC/DC | |
| flash energy | 5 J |
| assembly style | Customer assembly, up to 5 units | |
|---|---|---|
| connections - terminals | Screw clamp terminals, <= 1 x 1.5 mm² with cable end | |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 | |
| nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 | |
| current consumption | < 350 mA DC< 550 mA AC | |
| [Uimp] rated impulse withstand voltage | IEC 60947-1 4 kV | |
| flashing frequency | 1 Hz | |
| net weight | 0.31 kg |
| product certifications | CSAULGOST | |
|---|---|---|
| standards | EN/IEC 60947-5-1 | |
| protective treatment | TC | |
| ambient air temperature for storage | -40…70 °C | |
| electrical shock protection class | Class I on support tube, with metal fixing plate conforming to IEC 60536Class II on base unit conforming to IEC 60536Class II on support tube, with plastic fixing plate conforming to IEC 60536 | |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Warranty | 18 months |
|---|
