Details
Characteristics

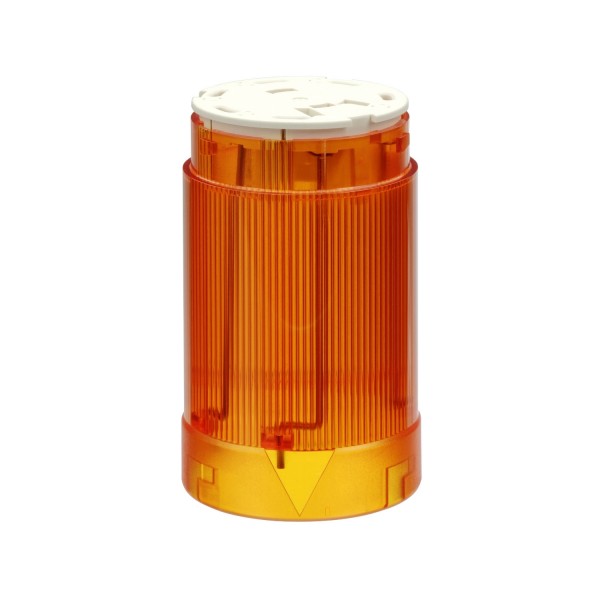

| range of product | Harmony XVM | |
|---|---|---|
| product or component type | Indicator bank | |
| beacon or indicator bank unit type | Illuminated unit | |
| component name | XVM | |
| light source | Bulb not included, orange | |
| bulb type | Incandescent with BA 15d baseSuper bright LEDFlash discharge tube | |
| [Us] rated supply voltage | <= 230 V AC/DC |
| mounting diameter | 45 mm | |
|---|---|---|
| assembly style | Customer assembly | |
| maximum power dissipation in W | 5 W | |
| connections - terminals | Screw terminals, 1 x 0.325...1 x 1.5 mm² | |
| marking | CE | |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 | |
| nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 | |
| [Uimp] rated impulse withstand voltage | IEC 60947-1 4 kV | |
| luminance | 650 cd/m² | |
| CAD overall width | 47 mm | |
| CAD overall height | 65 mm | |
| CAD overall depth | 47 mm | |
| net weight | 0.04 kg |
| product certifications | CCC | |
|---|---|---|
| standards | EN/IEC 60947-5-1EN/IEC 60947-1 | |
| ambient air temperature for storage | -25…70 °C | |
| ambient air temperature for operation | -10…50 °C | |
| IP degree of protection | IP40 any position except vertical position conforming to IEC 60529IP42 vertical position conforming to IEC 60529 | |
| electrical shock protection class | Class I aluminium tube mounting conforming to IEC 60947-1Class I aluminium tube mounting conforming to IEC 60947-5-1Class I aluminium tube mounting conforming to IEC 61140Class II base mounting conforming to IEC 60947-1Class II base mounting conforming to IEC 60947-5-1Class II base mounting conforming to IEC 61140 | |
| protective treatment | TC |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
|---|
