Details
Characteristics

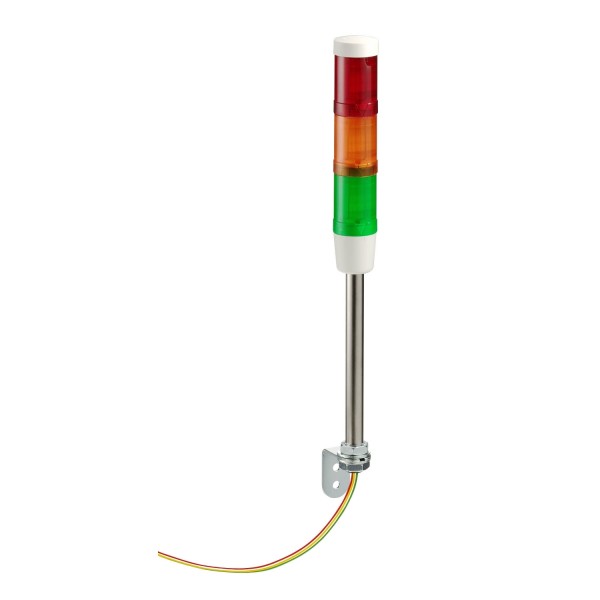

| range of product | Harmony XVM | |
|---|---|---|
| product or component type | Pre-assembled and pre-cabled indicator bank | |
| beacon or indicator bank unit type | 3 illuminated units | |
| component name | XVM | |
| light source | Orange incandescent bulb with BA 15d base steady signalling <5 WRed flash discharge tubeflashing signalling Green incandescent bulb with BA 15d base steady signalling <5 W | |
| light block color | Orange/green/red (flashing) | |
| [Us] rated supply voltage | 120 V AC/DC | |
| indicator bank base type | Base without buzzer | |
| mounting mode | Vertical |
| kit composition | Aluminium support tubeCoverPlastic fixing plateBase unit | |
|---|---|---|
| mounting diameter | 45 mm | |
| connections - terminals | Flying leads,clamping capacity: 1 x 0.325 mm² (AWG 22) | |
| marking | CE | |
| mounting support | Aluminium tube | |
| short-circuit protection | 0.2 A | |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 | |
| nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 | |
| current consumption | 33 mA on flash discharge tube unit | |
| [Uimp] rated impulse withstand voltage | IEC 60947-1 4 kV | |
| luminance | 650 cd/m² for incandescent bulb unit | |
| flashing frequency | 0.8 Hz with flash discharge tube unit | |
| net weight | 0.454 kg |
| IP degree of protection | IP54 vertical position conforming to IEC 60529 | |
|---|---|---|
| product certifications | CCC | |
| standards | EN/IEC 60947-1EN/IEC 60947-5-1 | |
| ambient air temperature for storage | -25…70 °C | |
| ambient air temperature for operation | -10…50 °C | |
| overvoltage category | Class I conforming to IEC 60947-1Class I conforming to IEC 60947-5-1Class I conforming to IEC 61140 | |
| protective treatment | TC |
| Warranty | 18 months |
|---|
