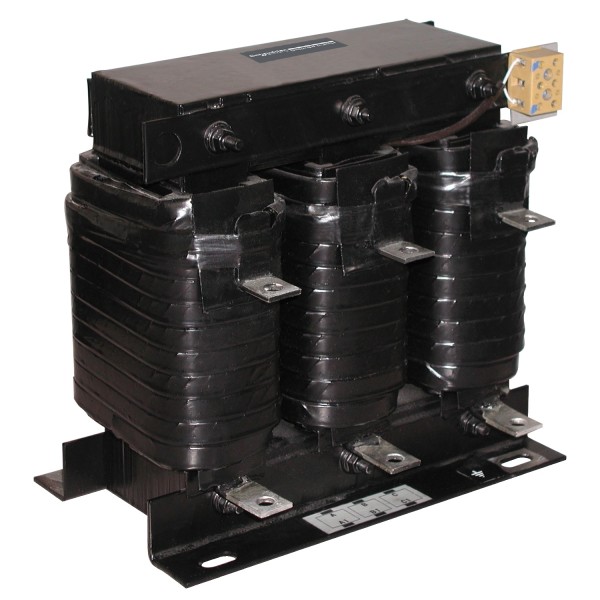

inductance - detuned reactor - 25 kvar 400..415V 50 Hz

Details

Complementary
power losses	200 W
value of inductance	1,5 mH
inductance tolerance	- 5 % to 5 % per phase
fundamental current rating	36,4 A
electrical insulation class	Class H
[Ui] rated insulation voltage	1,1 kV
dielectric test voltage	4 kV 50 Hz 1 minute
[Imp] maximum permanent current	1.19 x I1
harmonic current spectrum	13 % x I7 3 % x I3 44 % x I5 5 % x I11
dynamic withstand current	2.2 x Isc
[Ith] conventional free air thermal current	2 A 250 V AC 50 Hz
type of installation	Indoor installation
type of cooling	Natural
connections - terminals	Drilled terminal
fixing center	205 x 110 mm
height	230 mm
width	240 mm
depth	140 mm
net weight	18 kg

Environment
standards	EN 60289 IEC 60289
IP degree of protection	IP00
operating altitude	<= 2000 m
ambient air temperature for operation	0…55 °C <= 1000 m 0…50 °C > 1000...2000 m
average ambient air temperature for operation	50 °C <= 1000 m average over 24 hours) 40 °C <= 1000 m average over 1 year) 45 °C > 1000...2000 m average over 24 hours) 35 °C > 1000...2000 m average over 1 year)
climatic withstand	Relative humidity 20...80 % Salt mist 400 V/50 Hz) 250 hours

Contractual warranty
Garantii	18 months
