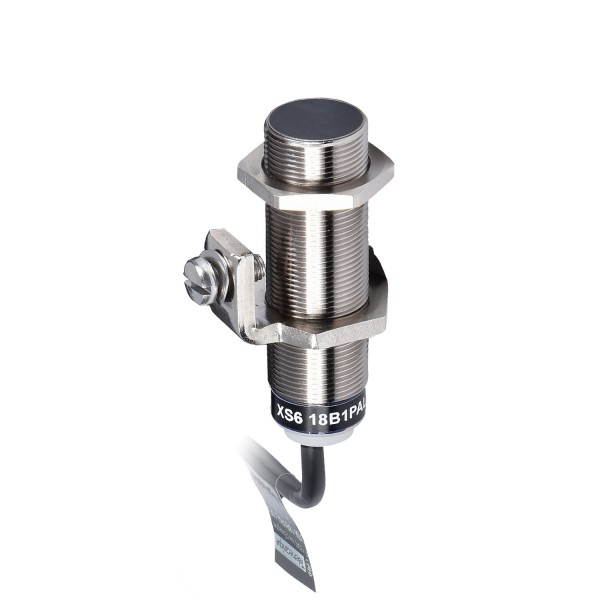

inductive sensor analog - M18 - Sn5mm - 12..24VDC

Details

Main
range of product	OsiSense XS ATEX D
series name	Application
sensor type	Inductive proximity sensor
device application	ATEX dust
sensor name	XS1
sensor design	Cylindrical M18
size	53 mm
body type	Fixed
detector flush mounting acceptance	Flush mountable
material	Metal
enclosure material	Nickel plated brass
[Sn] nominal sensing distance	5 mm
type of output signal	Analogue
wiring technique	2-wire
output circuit type	DC
analogue output range	4...20 mA
electrical connection	Cable
cable length	2 m
[Us] rated supply voltage	12...24 V DC
IP degree of protection	IP67 conforming to IEC 60529

Complementary
thread type	M18 x 1
detection face	Frontal
front material	PPS
sensing range	> 4...8 mm
operating zone	0.5…5 mm
repeat accuracy	<= 3% of Sr
linearity error	+/- 2 mA
cable composition	3 x 0.34 mm²
wire insulation material	PvR
supply voltage limits	10…38 V DC
switching frequency	<= 500 Hz
current consumption	4 mA no-load
maximum output current drift	10 %
marking	II2 D-Ex tb IIIC T90°C Db IP67
threaded length	44 mm
height	18 mm
length	53 mm

Environment
environmental characteristic	Hazardous location
standards	EN/IEC 60079-0 EN/IEC 60079-31
directives	94/9/EC - ATEX directive
product certifications	INERIS 04ATEX0022X
ambient air temperature for operation	-20…60 °C
dust zone	Zone 21 - 22

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information

Contractual warranty
Warranty	18 months
