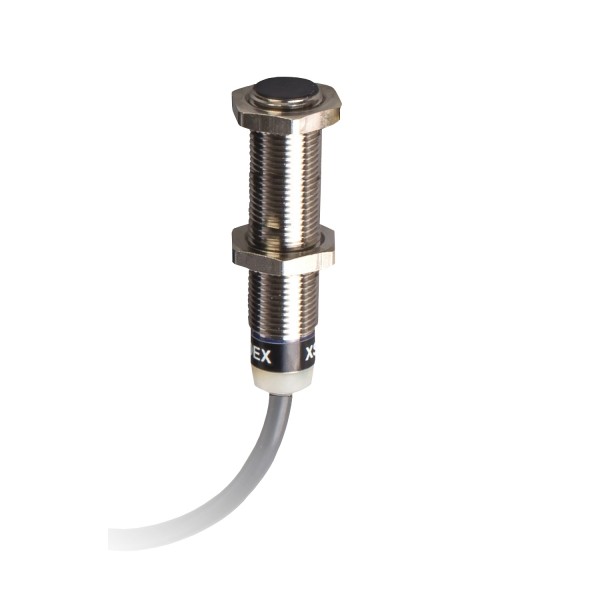

inductive sensor hazardous area - M12 - Sn4mm - 12..48VDC - NC

Details

Main
range of product	OsiSense XS ATEX D
series name	Application
sensor type	Inductive proximity sensor
device application	ATEX dust
sensor name	XS6
sensor design	Cylindrical M12
size	54 mm
body type	Fixed
detector flush mounting acceptance	Flush mountable
material	Metal
enclosure material	Nickel plated brass
[Sn] nominal sensing distance	4 mm
type of output signal	Discrete
wiring technique	3-wire
discrete output function	1 NC
output circuit type	DC
discrete output type	PNP
electrical connection	Cable
cable length	10 m
[Us] rated supply voltage	12...48 V DC with reverse polarity protection
switching capacity in mA	<= 200 mA with overload and short-circuit protection
IP degree of protection	IP68 conforming to IEC 60529 IP69K

Environment
environmental characteristic	Hazardous location
standards	EN/IEC 60079-31 EN/IEC 60079-0
directives	2014/34/EU - ATEX directive
product certifications	INERIS 04ATEX0022X IEC-Ex INE 17.0006
ambient air temperature for operation	-20…60 °C
vibration resistance	25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	50 gn for 11 ms conforming to IEC 60068-2-27
dust zone	Zone 21 - 22

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information

Contractual warranty
Warranty	18 months
